[PFU Registration Adj.]
Overview
Adjust the amount of paper loop for pre-registered rollers of [Tray1] to [Tray9] and [Bypass].
Adjust if there is a paper jam in the register part or if paper curls or wrinkles has occurred.
The adjustment is possible in the wider range than [Pre-registration Adj.].
Reference
- For details about [Pre-registration Adj.], refer to [Pre-registration Adj.].
Specifications
Category | Adjustment / Maintenance | ||
Location | Machine | Control Panel | |
Printer driver | - | ||
Application | - | ||
Required options | This function requires one of the following optional devices. Paper Feeder Unit PF-712 Paper Feeder Unit PF-713 Multi Bypass Tray MB-511 | ||
Required items | - | ||
Setting items | Paper tray selection key | Select the adjustment target. | |
[Thin] | Select the paper type to adjust. | ||
[Normal] | |||
[Thick] | |||
[Envelope] | |||
[+] / [,] | Switches the adjustment target page. | ||
Keypad | Used to enter numeric values. | ||
[+ / -] | Sets the plus or minus of the numeric value. | ||
[Clear] | Returns the entered numeric value to "0". | ||
[Set] | Sets the numeric value entered using the on-screen keypad or the Keypad of the Control panel to [Current Data]. | ||
[Print Mode] | Outputs a chart for measurement. For details, refer to [COPY] Screen. | ||
Remarks | - | ||
Reference | - | ||

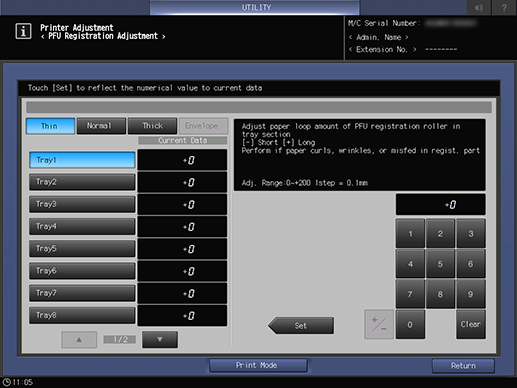

Screen access | Control panel - Utility/Counter - [Administrator Setting] - [System Setting] - [Expert Adjustment] - [Printer Adjustment] - [PFU Registration Adj.] | ||
Procedure
1
Select the target paper tray selection key and paper type.
2
Press [Print Mode].
3
Load A3 w or 11 e 17 w paper in the paper tray for adjustment selected in step 1, and select that paper tray.
4
Press Start on the Control panel.
For details about the "
" mark that is printed on the front side of the chart, refer to About Charts.
5
Check for paper curls or wrinkles.
6
If any adjustments are required, press [Exit PrintMode] to return to the setting screen.
7
Use the on-screen keypad or the Keypad of the Control panel to enter the numeric value.
Use [+ / -] to select the plus or minus of the numeric value. To change [Current Data], press [Set].
[Adj. Range:0~+200 1step = 0.1mm]
8
Repeat steps 1 to 7 until the desired result is obtained.
