[Half-Fold Strength Adj.]
Overview
Adjust the roller pressing time for Fold & Staple or Multi Half Fold.
Make this adjustment when the booklet is weakly folded. However, if the pressing time is lengthened, productivity will be reduced.
Specifications
Category | Adjustment / Maintenance | ||
Location | Machine | Touch Panel | |
Printer driver | - | ||
Application | - | ||
Required options | Finisher FS-541 with Saddle Stitcher SD-510 mounted | ||
Required items | - | ||

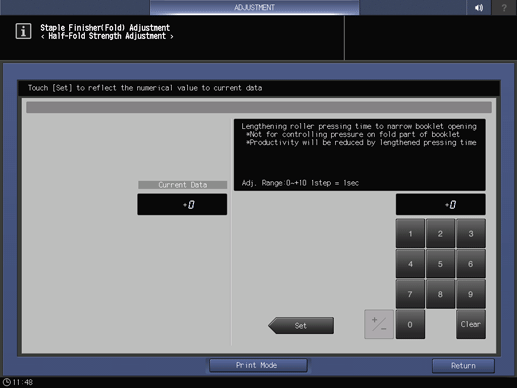

Setting items | [Current Data] | Displays the adjustment value of the pressing time. | |
Keypad | Used to enter numeric values. | ||
[Clear] | Returns the entered numeric value to "0". | ||
[Set] | Sets the numeric value entered using the keypad to [Current Data]. | ||
Remarks | - | ||
Reference | - | ||
Screen access | Touch panel - [MACHINE] - [Adjustment] - [Finisher Adjustment] - [Staple Finisher Adjustment] - [Staple Finisher(Fold) Adj.] - [Half-Fold Strength Adj.] | ||
Control panel - Utility/Counter - [Administrator Setting] - [System Setting] - [Expert Adjustment] - [Finisher Adjustment] - [Staple Finisher Adjustment] - [Staple Finisher(Fold) Adj.] - [Half-Fold Strength Adj.] | |||
Procedure
1
Press [Print Mode].
2
Load the desired paper into a paper tray, and select that paper tray.
[Output Setting] is automatically set to [Fold&Staple].
3
Press Start on the Control panel.
A sample is output.
4
Check the folding strength of the output paper.
5
If any adjustments are required, press [Exit PrintMode] to return to the setting screen.
6
Use the on-screen keypad to enter the numeric value.
Use [+]/[-] to select the plus or minus of the numeric value. To change [Current Data], press [Set].

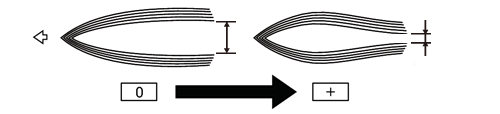

[Adj. Range:0~+10 1step = 1sec]
7
Repeat step 1 to step 6 until the desired result is obtained.
