[IP Filtering (Permit Access)]
Overview
Sets the computer IP address range to allow connection with the system.
Up to five ranges of IP address can be set.
Tips
Below are examples of allowing only one IP address (Ex: when allowing 192.168.11.22).
- Enter 192.168.11.22 - 0.0.0.0
- Input 0.0.0.0 - 192.168.11.22
- Input 192.168.11.22 - 192.168.11.22
Specifications
Category | Network / Security, Device Management | ||
Location | Machine | Control Panel | |
Printer driver | - | ||
Application | - | ||
Required options | - | ||
Required items | - | ||
Setting items | [Enable] | Enable [IP Filtering (Permit Access)]. | |
-[Disable] | Disable [IP Filtering (Permit Access)]. | ||
[Set 1] | Enter the IP address range to allow connection with the system. To set this item, select [Enable]. | ||
[Set 2] | |||
[Set 3] | |||
[Set 4] | |||
[Set 5] | |||
[OK] | Saves the settings and moves to the previous screen. | ||
[Exit [UTILITY]] | Closes the [UTILITY] screen. | ||
Remarks | -: Default | ||
Reference | - | ||
Screen access | Control panel - Utility/Counter - [Administrator Setting] - [Network Setting] - [NIC Settings] - [TCP/IP Settings] - [IP Filtering (Permit Access)] | ||
Procedure
1
Press [Enable].
2

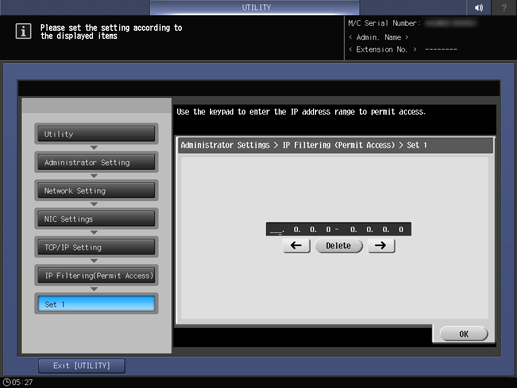

Selects [Set 1].
The setting screen is displayed.
3
Enter the IP address range to allow connection using Control panel - Keypad.
Pressing
/
moves the cursor position.
Press [Delete] to delete text if the cursor is above text, or the previous character if there is no text in the position of the cursor.
4
Press [OK].
Entered range is set and the setting screen closes.
5
Press [OK].
