User's Guide

> Administrator Setting > [E-Mail Settings] > [E-Mail TX (SMTP)] > Screen

Screen

Overview
Screen Access
Screen

Overview

Set server, which is the recipient when sending email.

Required when using Scan to email function.

Screen Access

Control panel - Utility/Counter - [Administrator Setting] - [Network Setting] - [NIC Settings] - [E-Mail Settings] - [E-Mail TX (SMTP)]

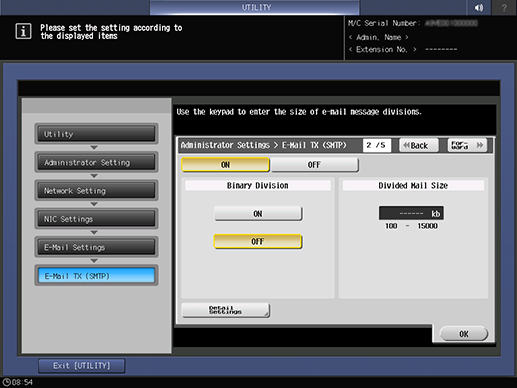

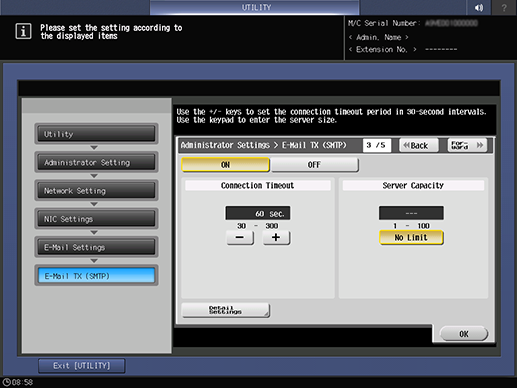

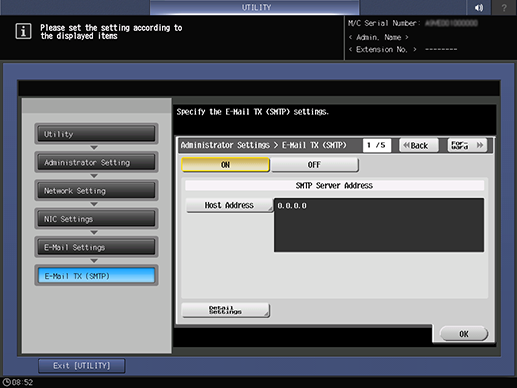

Screen

Common keys

Key name

Description

[Back]

Moves to the previous screen.

[For-ward]

Moves to the next screen.

[OK]

Saves the settings and moves to the previous screen.

[Detail Settings]

Refer to [E-Mail TX (SMTP)] - [Detail Settings].

[Exit [UTILITY]]

Closes the [UTILITY] screen.
