User's Guide

> Administrator Setting > [Common Setting] > [Operation after Deviation/Out of Range was Detected]

[Operation after Deviation/Out of Range was Detected]

Overview
Specifications
Procedure

Overview

Set the operation to be performed when a deviation or non-standard image is detected.

Specifications

Category

Device Management

Location

Machine

Control Panel

Printer driver

-

Application

-

Required options

Intelligent Quality Optimizer IQ-501 and Video Interface Kit VI-514

Required items

-

Setting items

-[Stop]

Stops printing when a deviation or non-standard image is detected.

[Continue Output]

Continues printing even if a deviation or non-standard image is detected.

[Detection Count]

Sets the number of deviations or non-standard images detected before printing is stopped while [Continue Output] is selected.

Available range: 0 to 10 (Default: 2)

Remarks

-: Default

Reference

-

Screen access

Control panel - Utility/Counter - [User Setting] - [Common Setting]

Control panel - Utility/Counter - [Administrator Setting] - [Common Setting]

Procedure

Configure the setting for [Continue Output].
1
Press [Continue Output].
2
Press [Detection Count].

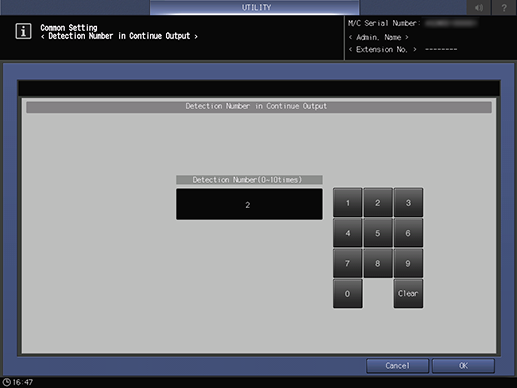

The setting screen is displayed.

3
Use the on-screen keypad to enter the number of detected deviations.

Available range: 0 to 10

Default: 2

4
Press [OK].
