[ISW]
Overview
Allow overwriting of firmware and checking of the current version.
ROM (program and data) saved on flash memory and SSD installed on this system and in various options is forwarded to a USB flash drive for overwriting.
NOTICE
- The following settings are required to be done by the service representative when using this function.
- Set [Enhanced Security Mode] to [ON].
- Set [HDD Encryption Setting] to [ON].
Tips
- For details on ROM, contact your service representative.
Reference
- For details about [Enhanced Security Mode], refer to [Enhanced Security Mode].
- For details about [HDD Encryption Setting], refer to [HDD Encryption Setting].
Specifications
Category | Adjustment / Maintenance | ||
Location | Machine | Control Panel | |
Printer driver | - | ||
Application | - | ||
Required options | - | ||
Required items | A USB flash drive with ROM file | ||
Setting items | [Division] | Displays ROM category. | |
[Version] | Current firmware version. | ||
[ISW Object] | Select the ISW applicable key for overwriting. When [Package(I0)] is selected, everything is subject to overwriting. | ||
[USB Flash Drive ISW] | Press for overwriting. | ||
[Internet ISW] | Overwrite through the Internet. For details on overwriting with [Internet ISW], contact your service representative. | ||
Remarks | - | ||
Reference | - | ||
Screen access | Control panel - Utility/Counter - [Administrator Setting] - [Security Setting] - [Security Details] - [ISW] | ||
Procedure

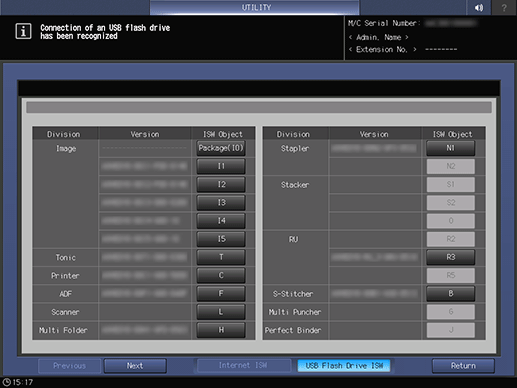

1
Select [USB Flash Drive ISW].
2
Select the ISW applicable key for overwriting.
The setting screen is displayed.

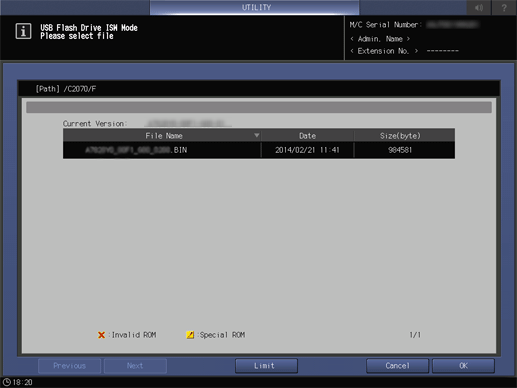

3
Select file and press [OK].
Press [Limit] to only display the files with a BIN extension, or ROM files compatible with the device destination.

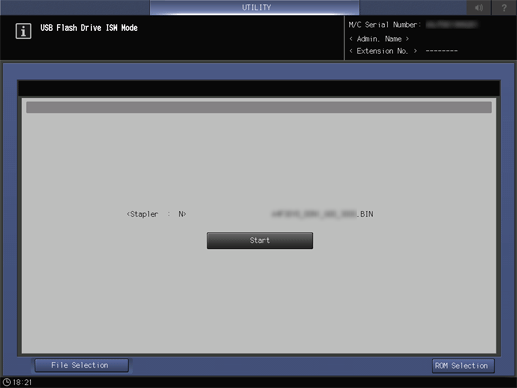

4
Press [Start].

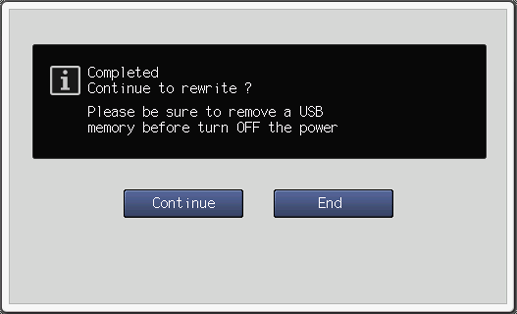

A dialog is displayed when overwriting is complete.
5
Press [End].
System reboots automatically.
When performing sequential overwriting, select [Continue].
