User's Guide

> Administrator Setting > [Multi Folder(Fold) Adj.] > Screen

Screen

Overview
Screen Access
Screen

Overview

Adjust fold position of FoldingUnit FD-503.

Adjust fold position deviation to set the finishing of printout.

Screen Access

Control panel - Utility/Counter - [Administrator Setting] - [System Setting] - [Expert Adjustment] - [Finisher Adjustment] - [Multi Folder Adjustment] - [Multi Folder(Fold) Adj.]

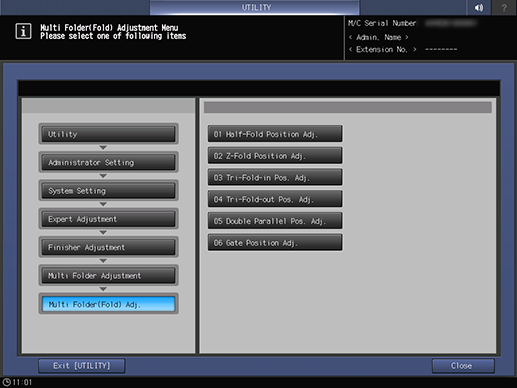

Screen

Common keys

Key name

Description

[Print Mode]

Outputs a sample for adjustment.

[Close]

Moves to the previous screen.

[Return]

Moves to the previous screen.

[Exit [UTILITY]]

Closes the [UTILITY] screen.
