[Port Specification Method]
Overview
Set the port number of the protocol.
NOTICE
- The following setting is required to use this function.
- Set to [TCP] or [UDP] in [Protocol Identification Setting].
Reference
- For details about [Protocol Identification Setting], refer to [Protocol Identification Setting].
Specifications
Category | Network / Security, Device Management | ||
Location | Machine | Control Panel | |
Printer driver | - | ||
Application | - | ||
Required options | - | ||
Required items | - | ||
Setting items | [Port Number] | ||
[Sender Port Number] | Sets sending source port number. | ||
[Destination Port Number] | Sets sending recipient port number. | ||
Remarks | - | ||
Reference | - | ||

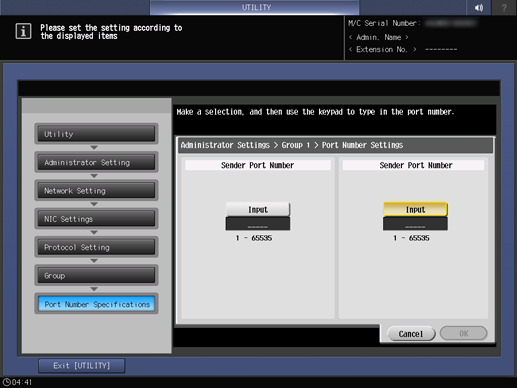

Screen access | Control panel - Utility/Counter - [Administrator Setting] - [Network Setting] - [NIC Settings] - [TCP/IP Settings] - [IPsec Settings] - [IPsec Settings] - [Protocol Setting] - Select one group - [Edit] - [Port Number] | ||
Procedure
1
Press [Input] on the [Sender Port Number].
2
Enter the sender's port number using the Keypad on the Control panel.
3
Press [Input] on the [Sender Port Number].
4
Enter the port number using the Keypad of the Control panel.
5
Press [OK].
The setting is applied.
