[Time Setting]
Overview
Configure ON/OFF timer of the system for each day of the week.
Tips
This function will be disabled under the following conditions, even if timer reservation time is configured.
- When configured to a non-operating day using [Date Setting]
- When configured to the time same as the ON/OFF timer.
Reference
- For details about [Date Setting], refer to [Date Setting].
Specifications
Category | Device Management | ||
Location | Machine | Control Panel | |
Printer driver | - | ||
Application | - | ||
Required options | - | ||
Required items | - | ||
Setting items | [Set] | Moves the cursor. | |
Keypad | Used to enter numeric values. | ||
[Daily Setting] | Collectively sets the time for each day of the week. | ||
Remarks | - | ||
Reference | - | ||
Screen access | Control panel - Utility/Counter - [Administrator Setting] - [System Setting] - [Weekly Timer Setting] - [Time Setting] | ||
Procedure
1

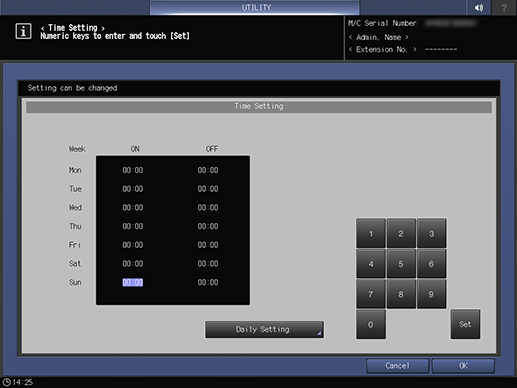

Press [Set] and move the cursor to either [ON] or [OFF] for the day you want to configure.
2
Enter the time you want to set using the touch panel keypad or Keypad of the Control paneland then press [OK].
3

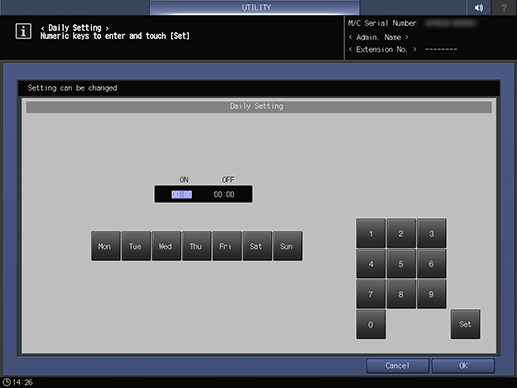

Press [Daily Setting] when configuring the time for each day in batch.
4
Select the keys for the days you want to configure from [Mon] to [Sun].
5
Press [Set] and move the cursor to either [ON] or [OFF].
6
Enter the time you want to set using the touch panel keypad or using Control panel - Keypad.
7
Press [OK].
