User's Guide

> Administrator Setting > [Process Adjustment] > [Toner Density Sensor Speed]

[Toner Density Sensor Speed]

Overview
Specifications
Procedure

Overview

Automatically re-adjust the toner density control threshold of Mid High Speed, Medium Speed, and Low Speed.

This function prevents margins from being covered or toner from scattering due to unstable toner density.

Specifications

Category

Adjustment / Maintenance

Location

Machine

Control Panel

Printer driver

-

Application

-

Required options

-

Required items

-

Setting items

[Start]

Displays the adjustment values of Mid High Speed, Medium Speed, and Low Speed.

[Stop]

Cancels confirmation.

Remarks

-

Reference

-

Screen access

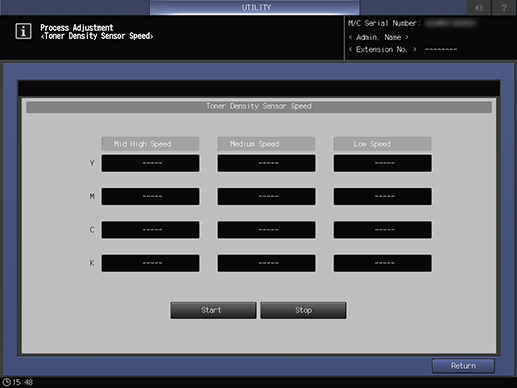

Control panel - Utility/Counter - [Administrator Setting] - [System Setting] - [Expert Adjustment] - [Process Adjustment] - [Toner Density Sensor Speed]

Procedure

1
Press [Start].

The adjustment will start automatically.

After adjustment was completed, the adjustment values of yellow, magenta, cyan, and black are displayed individually.

To cancel confirmation, press [Stop].

Even if you press [Return] without pressing [Stop] after [Start], the display does not move to the previous screen.
