[Glue Finish Position]
Overview
Adjust the position to finish gluing on the body.
Make this adjustment when there is a problem with the glue amount when performing perfect binding using Perfect Binder PB-503.
Tips
- If a numeric value is entered in [Offset for All Size], it is applied to all the paper sizes. If a numeric value is entered for a specific paper size, the setting value becomes the sum of the entered value of the specific paper size and the entered value of [Offset for All Size].
Specifications
Category | Adjustment / Maintenance | ||
Location | Machine | Touch Panel | |
Printer driver | - | ||
Application | - | ||
Required options | Perfect Binder PB-503 | ||
Required items | - | ||
Setting items | [Offset for All Size] | Sets the gluing start position common to all the paper sizes. | |
Paper size selection key | Selects the paper size to adjust. | ||
[+] / [,] | Switches the paper size page. | ||
[Set] | Sets the numeric value entered using the keypad to the selected setting item. | ||
Remarks | The paper size used in this section refers to the body size for the cover. | ||
Reference | - | ||
Screen access | Touch panel - [MACHINE] - [Adjustment] - [Finisher Adjustment] - [Perfect Binder Adjustment] - [Glue Finish Position] | ||
Control panel - Utility/Counter - [Administrator Setting] - [System Setting] - [Expert Adjustment] - [Finisher Adjustment] - [Perfect Binder Adjustment] - [Glue Finish Position] | |||
Procedure
1
Load covers into the Perfect binder cover tray or any paper tray.
When using any paper tray, you need to set a cover tray by selecting [Perfect Bind] of [Output Setting]. For details, refer to [Cover Tray].
2
Load body paper into any paper tray.
3
Select the key of the paper size you want to adjust.
4
Press [Print Mode].
5
Select the tray in which body paper was loaded in step 2.
6
Press Start on the Control panel.
A perfect binding sample is output.
7
Check whether the body gluing finish position is appropriate in the Ahead or Back modes.
(1) Body (2) Gluing finish position in Ahead mode (3) Gluing finish position in Back mode
8
If any adjustments are required, press [Exit PrintMode] to return to the setting screen.
9

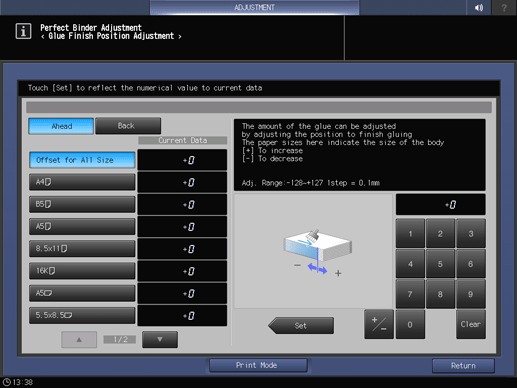

Select [Ahead] or [Back].
10
Use the on-screen keypad to enter the numeric value.
Use [+]/[-] to select the plus or minus of the numeric value. To change [Current Data], press [Set].
(-) To decrease, (+) To increase
[Adj. Range:-128~+127 1step = 0.1mm]
11
Repeat step 4 to step 10 until the desired result is obtained.
