[Lead Edge Erase Adjustment]
Overview
Adjust the amount of the image loss on a lead edge (amount of the blank area in the original) when printing.
NOTICE
- The following setting is required to use this function.
- Make adjustments in [FD-Mag. Adjustment] of [Printer Adjustment].
Tips
- This item is displayed on a product equipped with a scanner and HDD. For details, refer to What Is [Administrator Setting]?.
Specifications
Category | Adjustment / Maintenance | ||
Location | Machine | Control Panel | |
Printer driver | - | ||
Application | - | ||
Required options | - | ||
Required items | - | ||
Setting items | Keypad | Used to enter numeric values. | |
[+ / -] | Sets the plus or minus of the numeric value. | ||
[Clear] | Returns the entered numeric value to "0". | ||
[Set] | Sets the numeric value entered using the on-screen keypad or the Keypad of the Control panel to [Current Data]. | ||
[Print Mode] | Outputs a chart for measurement. For details, refer to [COPY] Screen. | ||
Remarks | - | ||
Reference | - | ||

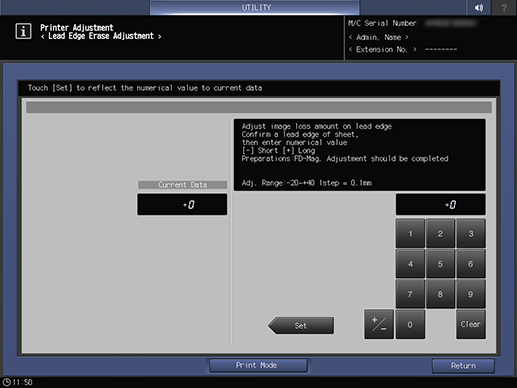

Screen access | Control panel - Utility/Counter - [Administrator Setting] - [System Setting] - [Expert Adjustment] - [Printer Adjustment] - [Lead Edge Erase Adjustment] | ||
Procedure
1
Press [Print Mode].
2
Set A3 w or 11 e 17 w paper and select the relevant paper feed tray.
3
Press Start on the Control panel.
A chart is output.
For details about the "
" mark that is printed on the front side of the chart, refer to About Charts.
4
Use the scale to measure the amount of the image loss on a lead edge (amount of the blank area in the original).
5
If any adjustments are required, press [Exit PrintMode] to return to the setting screen.
6
Use the on-screen keypad or the Keypad of the Control panel to enter the numeric value.
Use [+ / -] to select the plus or minus of the numeric value. To change [Current Data], press [Set].
[Adj. Range:-20~+40 1step = 0.1mm]
7
Repeat steps 1 to 6 until the desired result is obtained.
