[Tunnel End Point]
Overview
Set IPsec gateway IP address to be the communication recipient.
NOTICE
- Following settings are required to use this function.
- Select [Edit] using [ON].
- Set [Encapsulation Mode] to [Tunnel Mode]
Reference
- For details about [Edit], refer to [Edit].
- For details about [Encapsulation Mode], refer to [Encapsulation Mode].
Specifications
Category | Network / Security | ||
Location | Machine | Control Panel | |
Printer driver | - | ||
Application | - | ||
Required options | - | ||
Required items | - | ||
Setting items | [IP Address] | Enter the communication recipient IPsec gateway IP address. | |
Remarks | - | ||
Reference | - | ||
Screen access | Control panel - Utility/Counter - [Administrator Setting] - [Network Setting] - [NIC Settings] - [TCP/IP Settings] - [IPsec Settings] - [IPsec Settings] - [IPsec SA Settings] - [Edit] | ||
Procedure
1

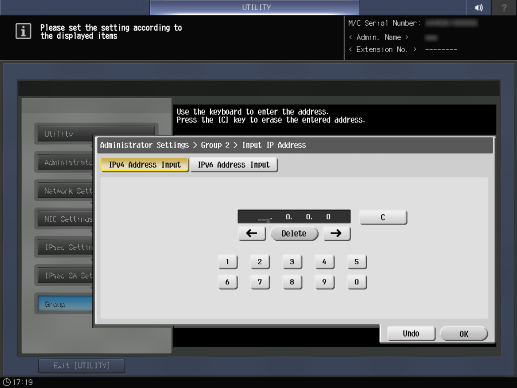

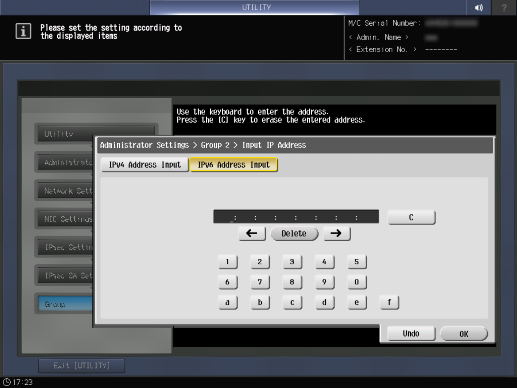

Select [IPv4 Address Input] or [IPv6 Address Input] and enter IP address.
The displayed screen differs depending on selected key.
For details about how to enter characters, refer to Entering Text.
When [Undo] is pressed, the numerical value returns to the value before corrections (default: 0.0.0.0.).
2
Press [OK].
