User's Guide

> Administrator Setting > [OpenAPI Auth. Management] > [Restriction Code Setting] > [Restriction Code Setting]

[Restriction Code Setting]

Overview
Specifications
Procedure

Overview

Registers forbidden code.

Allows settings of index, development code and applications.

Specifications

Category

Device Management

Location

Machine

Control Panel

Printer driver

-

Application

-

Required options

-

Required items

-

Setting items

[New]

Registers forbidden code.

[Close]

Moves to the previous screen.

Remarks

Up to 8 single-byte characters can be entered.

Reference

For details about how to enter characters, refer to Entering Text.

Screen access

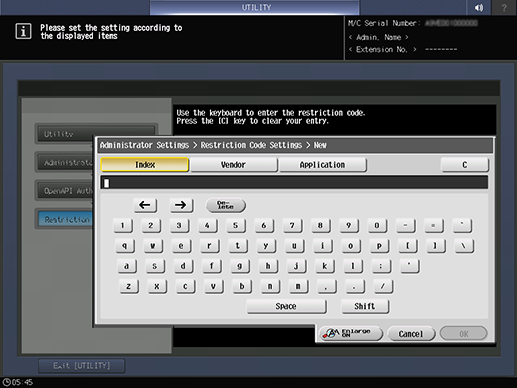

Control panel - Utility/Counter - [Administrator Setting] - [OpenAPI Auth. Management] - [Restriction Code Setting] - [New] - [Index]

Procedure

1
Press [New].

The input screen is displayed.

2
Select [Index], [Vendor] or [Application] and enter forbidden code.

Up to 8 single-byte characters can be entered.

Press [Enlarge ON] to expand text entry screen making it easier to see.

3
Press [OK].
