[4 Position Staple(Rear 2)]
Overview
Adjust the center position when stapling with 4 staples on the saddle stitcher.
Make this adjustment when the staple position deviates from the standard value.
This function adjusts the positions of the 2 rear locations of the 4 staple positions.
NOTICE
- To make correct adjustments, configure the following setting in advance.
- Perform [Saddle Stitcher Adjustment] in [Half-Fold Position Adj.].
Reference
- For details about [Half-Fold Position Adj.], refer to [Half-Fold Position Adj.].
Specifications
Category | Adjustment / Maintenance | ||
Location | Machine | Touch Panel | |
Printer driver | - | ||
Application | - | ||
Required options | Saddle Stitcher SD-513 | ||
Required items | - | ||
Setting items | [Offset for All Size] | Adjusts the staple center position common to all the paper sizes. | |
Paper size selection key | Selects the paper size to adjust. | ||
[+] / [,] | Switches the paper size page. | ||
Keypad | Used to enter numeric values. | ||
[Clear] | Returns the entered numeric value to "0". | ||
[Set] | Sets the numeric value entered using the keypad to the selected setting item. | ||
Remarks | - | ||
Reference | - | ||

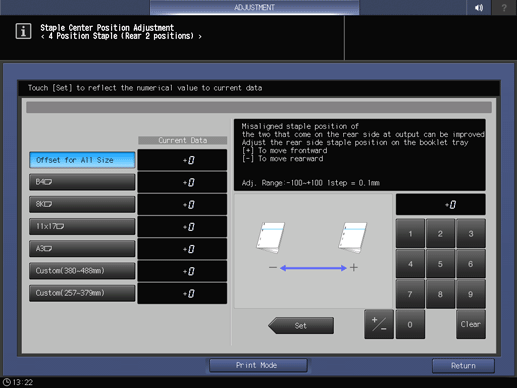

Screen access | Touch panel - [MACHINE] - [Adjustment] - [Finisher Adjustment] - [Saddle Stitcher Adjustment] - [Staple Center Position] - [4 Position Staple(Rear 2)] | ||
Control panel - Utility/Counter - [Administrator Setting] - [System Setting] - [Expert Adjustment] - [Finisher Adjustment] - [Saddle Stitcher Adjustment] - [Staple Center Position] - [4 Position Staple(Rear 2)] | |||
Procedure
1
Press the selection key of the paper size to adjust.
2
Press [Print Mode].
3
Load the paper of the size to be adjusted into any tray, and select that paper tray.
4
Press Start on the Control panel.
A sample is output.
5
Check the length from the edge to the center of the 2 rear locations of the 4 staples for the paper size.
6
If any adjustments are required, press [Exit PrintMode] to return to the setting screen.
7
Use the on-screen keypad to enter the numeric value.
Use [+]/[-] to select the plus or minus of the numeric value. To change [Current Data], press [Set].
[Adj. Range:-100~+100 1step = 0.1mm]
8
Repeat step 2 to step 7 until the desired result is obtained.
