User's Guide

> Administrator Setting > [Common Setting] > [Partition Paper when Deviation/Out of Range was Detected]

[Partition Paper when Deviation/Out of Range was Detected]

Overview
Specifications
Procedure

Overview

Configure the setting to insert partition paper when output paper does not satisfy the standard.

Set a paper tray to load partition paper into when inserting it.

Specifications

Category

Adjustment / Maintenance

Location

Machine

Touch Panel

Printer driver

-

Application

-

Required options

Intelligent Quality Optimizer IQ-501 and Video Interface Kit VI-514

Required items

-

Setting items

[ON]

Inserts partition paper when output paper does not satisfy the standard.

-[OFF]

Does not insert partition paper even if output paper does not satisfy the standard.

[Partition Paper]

Sets the paper tray to load partition paper into.

Remarks

-: Default

Reference

-

Screen access

Touch panel - Utility/Counter - [User Setting] - [Common Setting] - [Partition Paper when Deviation/Out of Range was Detected]

Procedure

1

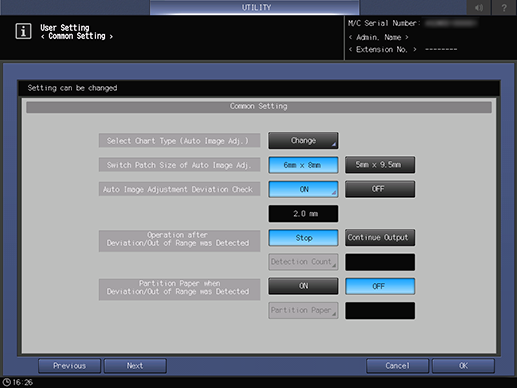

Press [Partition Paper].

The setting screen is displayed.

2

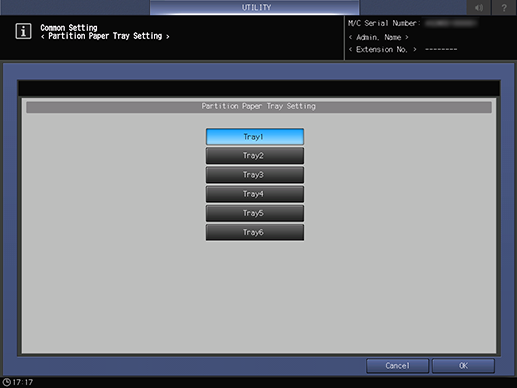

Select a paper tray to use.
3
Press [OK].
