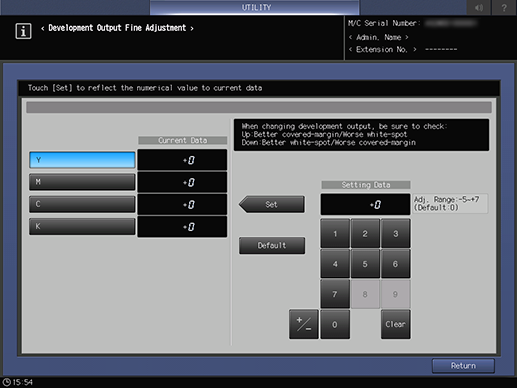

[Development Output Fine Adj.]
Overview
Adjust the development output for yellow, magenta, cyan, and black individually.
You can set whether to prioritize prevention of white spot or improvement of covered margin.
Tips
- If you return to the [MACHINE] screen after changing the setting, [Gamma Automatic Adj.] is performed.
Specifications
Category | Adjustment / Maintenance | ||
Location | Machine | Control Panel | |
Printer driver | - | ||
Application | - | ||
Required options | - | ||
Required items | - | ||
Setting items | [Y] | Select the color to adjust. | |
[M] | |||
[C] | |||
[K] | |||
[Set] | Sets the numeric value entered using the on-screen keypad to [Current Data]. Range: -5 to +7 | ||
[Default] | Returns [Current Data] to default. Default: 0 | ||
Keypad | Used to enter numeric values. | ||
[+ / -] | Sets the plus or minus of the numeric value. | ||
[Clear] | Returns the entered numeric value to "0". | ||
Remarks | - | ||
Reference | - | ||
Screen access | Control panel - Utility/Counter - [Administrator Setting] - [System Setting] - [Expert Adjustment] - [Process Adjustment] - [Development Output Fine Adj.] | ||
Procedure
1
Press the key for the item to be adjusted.
2
Use the on-screen keypad to enter the numeric value.
Use [+ / -] to select the plus or minus of the numeric value. To change [Current Data], press [Set].
Adjustment range: (Prevention of white spot) -5 to +7 (Improvement of covered margin)
