[Archived Data]
Overview
Register colorimetric data to this system via Web Utilities.
NOTICE
- Do not OFF/ON power supply during operations.
- It is necessary to access Web Utilities from the computer connected to the system and network during operations.
- Create a file name for the colorimetric data to be registered to the system using the following text string configuration.
(14 characters identification information printed on the chart)_(optional text up to 22 characters).txt
Specifications
Category | Print Workflow, Adjustment / Maintenance | ||
Location | Machine | Control Panel | |
Printer driver | - | ||
Application | - | ||
Required options | - | ||
Required items | - | ||
Setting items | [Archived Data] | Registers the colorimetric data to this system via Web Utilities. | |
[Previous] | Moves to the previous page. | ||
[Next] | Moves to the next page. | ||
Remarks | - | ||
Reference | - | ||
Screen access | Control panel - Utility/Counter - [Administrator Setting] - [System Setting] - [Expert Adjustment] - [Quality Adjustment] - [Density Balance Adjustment] - [Density Balance Data Reg/Del] - [Archived Data] | ||
Procedure
1

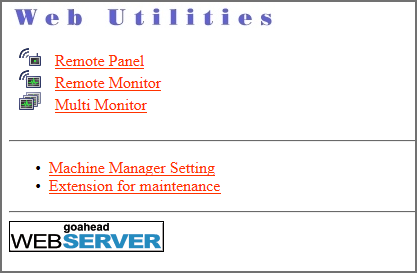

Access Web Utilities from the computer connected to the network and machine.
URL: http://<System IP Address>:30091/
URL (SSL): https://<System IP Address>:30092/
2
Click [Machine Manager Setting] and enter the administrator ID and password.
3

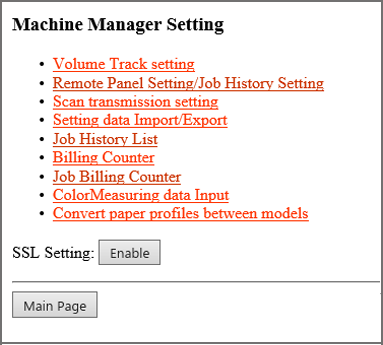

Click [ColorMeasuring data Input].
4

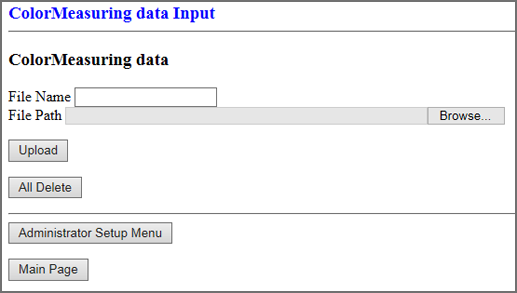

Enter the file name for the colorimetric data into the [File Name] field. Click [Browse] (next to File Path) and select colorimetric data saved on your computer.
5
Click [Upload].
The colorimetric data is saved to the system.
Repeat Procedures 4 and 5 if there is more than one set of colorimetric data.
6

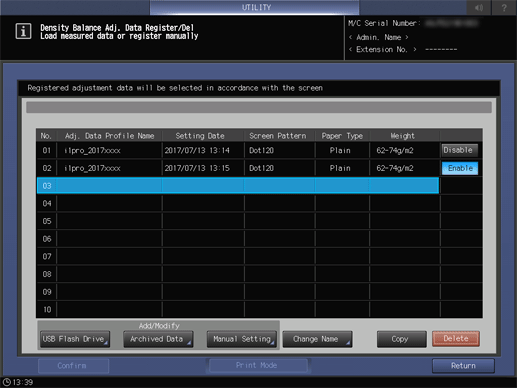

Select an empty column from the list of density balance adjustment values and press [Archived Data].
Select an already registered number when overwriting or combining colorimetric data.
The color measurement data that was saved in Procedure 5 is displayed.
7

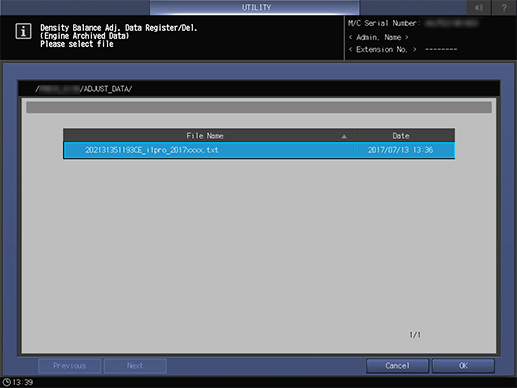

Select the colorimetric data to be registered and press [OK].
8

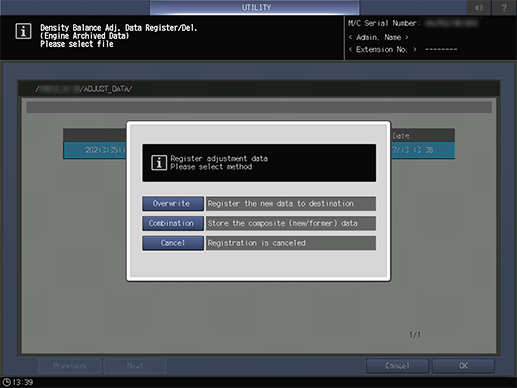

You will be prompted to confirm the operation if a number which was already registered in Procedure 6 is selected.
Press [Overwrite] when overwriting data.
Press [Combination] when combining data. [Combination] will be grayed-out (inactive) if the screen type, paper type and weight conditions do not match.
Press [Cancel] if data is not overwritten or combined.
9

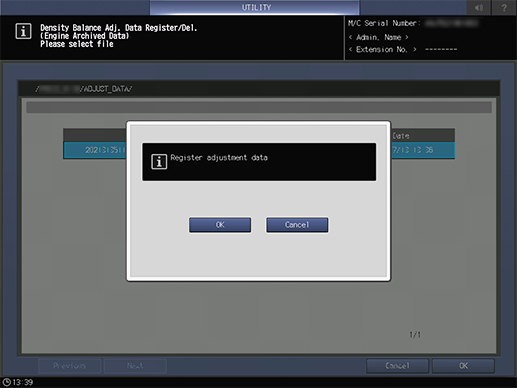

Press [OK] when the dialog box asking for registration confirmation appears.
The [Density Balance Data Reg/Del] screen is displayed and the colorimetric data is registered.
[Adj. Data Profile Name] can be changed. For details, refer to [Change Name].
