User's Guide

> Administrator Setting > [Common Setting] > [Select Chart Type (Auto Image Adj.)]

[Select Chart Type (Auto Image Adj.)]

Overview
Specifications
Procedure

Overview

Select the chart type when automatically adjusting the image quality for each paper weight.

Specifications

Category

Device Management

Location

Machine

Control Panel

Printer driver

-

Application

-

Required options

Intelligent Quality Optimizer IQ-501 and Video Interface Kit VI-514

Required items

-

Setting items

[Change]

Selects the chart type when automatically adjusting the image quality.

Remarks

-

Reference

-

Screen access

Control panel - Utility/Counter - [User Setting] - [Common Setting] - [Select Chart Type (Auto Image Adj.)]

Control panel - Utility/Counter - [Administrator Setting] - [Common Setting] - [Select Chart Type (Auto Image Adj.)]

Procedure

1
Press [Change].
2

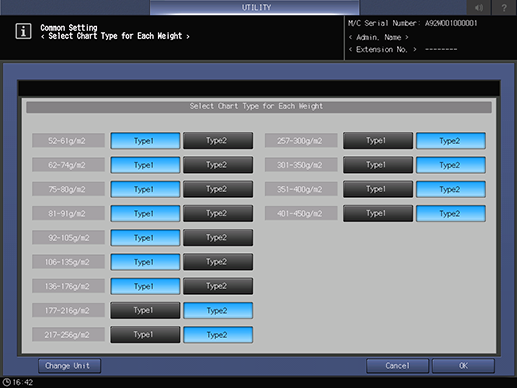

Select the chart type used for each weight.

Each time [Change Unit] is pressed, the weight display unit is switched.

3
Press [OK].
