[Counter Details]
Overview
Usage status is displayed for each registered user.
Categorized, detailed counter count can be checked for each operational item and counters count can also be reset for each operational item.
Specifications
Category | Device Management | ||
Location | Machine | Control Panel | |
Printer driver | - | ||
Application | - | ||
Required options | - | ||
Required items | - | ||
Setting items | -[Copy + Print] | Displays the print operation counter value. Items are described below. [Total]: Cumulative count for all print operations [Max Allowance]: Maximum value being set [Large Size]: Print count with a size larger than length: 271.0 mm / 10.67", and width: 168.0 mm / 6.61" [Original Counter]: Number of printed sheets [Paper Counter]: Number of output sheets | |
[Copy] | Displays the copy operation counter value. Items are described below. [Total]: Cumulative count of each color for all copies [Large Size]: Copy count with a size larger than length: 271.0 mm / 10.67", and width: 168.0 mm / 6.61" | ||
[Print] | Displays the print operation counter value. Items are described below. [Total]: Cumulative count of print operations for each color [Large Size]: Print count with a size larger than length: 271.0 mm / 10.67", and width: 168.0 mm / 6.61" | ||
[Scan] | Displays the scan operation counter value. Items are described below. [Total]: Cumulative count of scan operations [Large Size]: Scan count with a size larger than length: 271.0 mm / 10.67", and width: 168.0 mm / 6.61" | ||
[Other] | Displays the counter values for the following items. [Duplex Print Counter]: Number of duplex printed sheets [No.of Total Pages Output]: Number of printed sheets | ||
[Clear Counter] | Clears selected item counter. | ||
| Switches the displayed page. | ||
Remarks | -: Default | ||
Reference | - | ||
Screen access | Control panel - Utility/Counter - [Administrator Setting] - [User Auth./Account Track] - [User Authentication Settings] - [User Counter] - [Counter Details] | ||
/
Procedure
1

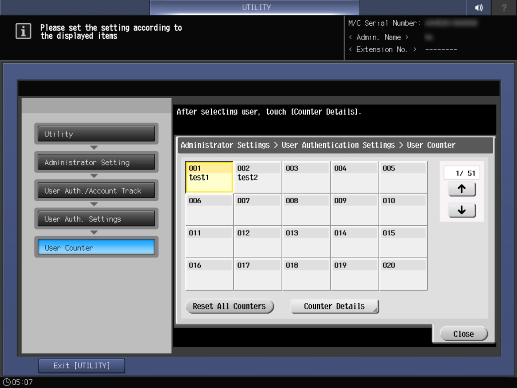

Select the user you want to check the counter value for.
To check the counter value of a public user, press [Public User Access] in the last page.
2

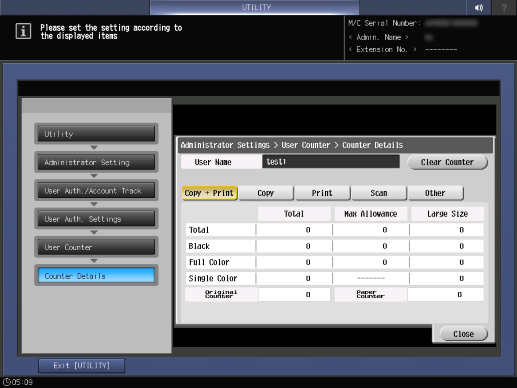

Press [Counter Details].
The [Counter Details] screen is displayed.
3
Select the item you want to check.
To reset the counter, press [Clear Counter].
