Administrator Setting | [Non-Image Area Erase]

[Non-Image Area Erase]

[NoImageAreaErase] is a function that erases a margin area outside the original when the original is scanned on the Original glass.

In this item, select conditions to erase a margin area.

Tips

This item is displayed on a product equipped with a scanner and HDD. For details, refer to What Is [Administrator Setting]?.

Reference

[NoImageAreaErase] can be enabled in [Application] of the [COPY] screen or [SCAN] screen. For details, refer to [NoImageAreaErase].
APS can be enabled in [Auto Paper] on the [COPY] screen. This function is also enabled when [Orig. Glass Auto Size Select] is set to [ON]. For details, refer to [Orig. Glass Auto Size Select] or [Paper] Screen.
AMS can be enabled in [Auto Zoom] on the [COPY] screen. This function is also enabled when [Auto Zoom (Original Glass)] is set to [ON]. For details, refer to [Auto Zoom (Original Glass)] or [Zoom] Screen.
[x1.0] can be enabled in [Zoom] of the [COPY] screen or [SCAN] screen. For details, refer to [x1.0].

Category		Print Workflow, Copy / Scan
Location	Machine	Control Panel
	Printer driver	-
	Application	-
Required options		-
Required items		-
Setting items		-[Erase Outside of Original]	Unconditionally erases a margin area outside the original.
		[ON - APS/AMS Only]	Erases a margin area outside the original only when APS or AMS is enabled.
		[Except Orig. Glass(1:1)]	Erases a margin area outside the original except when the original loaded on the Original glass is scanned in [x1.0].
Remarks		-: Default
Reference		-

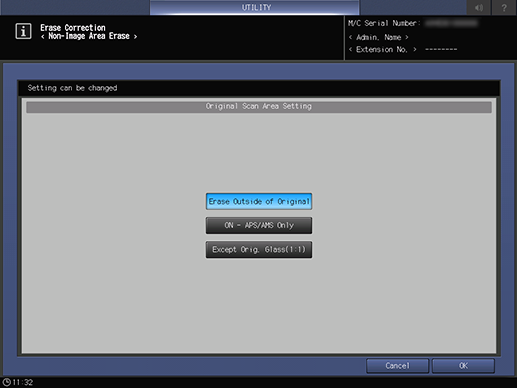

Screen access		Control panel - Utility/Counter - [Administrator Setting] - [System Setting] - [Expert Adjustment] - [Erase Correction] - [Non-Image Area Erase]

Select the area to scan the original.

Press [OK].
