[ADF Frame Erase]
Overview
Configure the settings for erasing (frame erasing) images located at the top, bottom and on both sides of the document when scanning the document using ADF.
If you want to erase, set the width to be erased (same width on all four sides).
Tips
- This item is displayed on a product equipped with a scanner and HDD. For details, refer to What Is [Administrator Setting]?.
Reference
- The Frame Erase function used at the time of scanning the document using Original glass can be configured using [FrameCenterErase] option on [COPY] or [SCAN]. For details, refer to [FrameCenterErase].
Specifications
Category | Print Workflow, Copy / Scan | ||
Location | Machine | Control Panel | |
Printer driver | - | ||
Application | - | ||
Required options | - | ||
Required items | - | ||
Setting items | [None] | Does not use this function. | |
[1mm] | Erases all the margin areas at the top, bottom, left, and right of the original with the specified width. | ||
[2mm] | |||
-[3mm] | |||
[4mm] | |||
[5mm] | |||
Remarks | -: Default | ||
Reference | - | ||
Screen access | Control panel - Utility/Counter - [Administrator Setting] - [System Setting] - [Expert Adjustment] - [Erase Correction] - [ADF Frame Erase] | ||

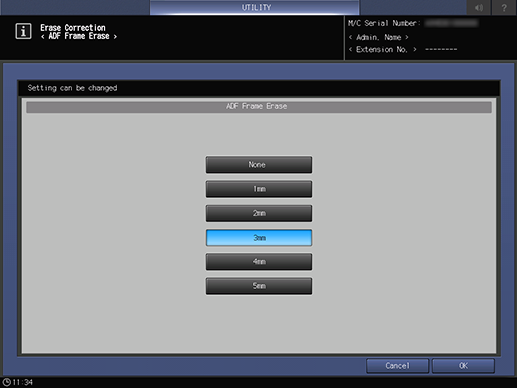

Procedure
1
Select the width to be erased (same width on all four sides).
2
Press [OK].
