[Fold&Staple Paper Width Adj.]
Overview
Adjust the width of the horizontal alignment plate that aligns a paper stack of the stapler to reduce misalignment or deflection of the paper for Fold & Staple.
Make this adjustment when a misalignment or deflection occurs on a paper stack for Half-Fold or Multi Tri-Fold.
Tips
- If a numeric value is entered in [Offset for All Size], it is applied to all the paper sizes. If a numeric value is entered for a specific paper size, the setting value becomes the sum of the entered value of the specific paper size and the entered value of [Offset for All Size].
Specifications
Category | Adjustment / Maintenance | ||
Location | Machine | Touch Panel | |
Printer driver | - | ||
Application | - | ||
Required options | Finisher FS-541 with Saddle Stitcher SD-510 mounted | ||
Required items | - | ||
Setting items | [Offset for All Size] | Adjusts the alignment pitch common to all sizes. | |
Paper size selection key | Selects the paper size to adjust. | ||
[+] / [,] | Switches the paper size page. | ||
Keypad | Used to enter numeric values. | ||
[Clear] | Returns the entered numeric value to "0". | ||
[Set] | Sets the numeric value entered using the keypad to the selected setting item. | ||
Remarks | - | ||
Reference | - | ||
Screen access | Touch panel - [MACHINE] - [Adjustment] - [Finisher Adjustment] - [Staple Finisher Adjustment] - [Staple Finisher(Fold) Adj.] - [Fold&Staple Paper Width Adj.] | ||
Control panel - Utility/Counter - [Administrator Setting] - [System Setting] - [Expert Adjustment] - [Finisher Adjustment] - [Staple Finisher Adjustment] - [Staple Finisher(Fold) Adj.] - [Fold&Staple Paper Width Adj.] | |||
Procedure
1
Press the selection key of the paper size to adjust.
2
Press [Print Mode].
3
Load the paper of the size selected in step 1 into any paper tray, and select that paper tray.
[Output Setting] is automatically set to [Fold&Staple].
4
Press Start on the Control panel.
A sample is output.
5

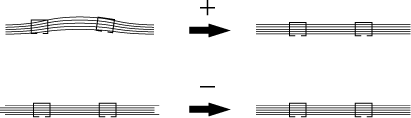

Check misalignment "a" of the output paper stack. Also, check distortion "b".
a: This is caused if the specified paper width is larger than the actual width.
b: This is caused if the specified paper width is smaller than the actual width.
Standard value: a = 1.0 mm or less
6
If any adjustments are required, press [Exit PrintMode] to return to the setting screen.
7
Use the on-screen keypad to enter the numeric value.
Use [+]/[-] to select the plus or minus of the numeric value. To change [Current Data], press [Set].
[Adj. Range:-50~+50 1step = 0.1mm]
8
Repeat step 2 to step 7 until the desired result is obtained.
