[Manual Input]

Overview
Specifications
Procedure

Overview

Manually sets IP address of this system according to used IPv4 environment.

NOTICE
  • Do not set the following combination for [IP Address] and [Subnet Mask].
  • [IP Address]: 203.0.113.1
  • [Subnet Mask]: 255.255.255.0

Specifications

Category

Network / Security

Location

Machine

Control Panel

Printer driver

-

Application

-

Required options

-

Required items

-

Setting items

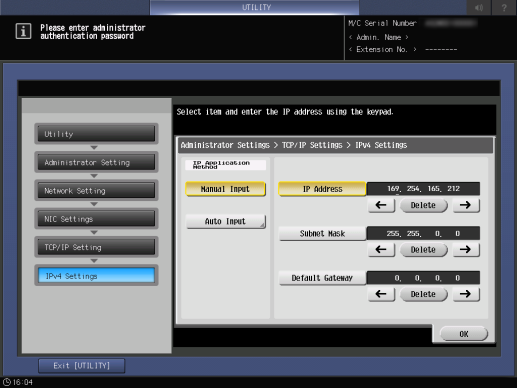

[Manual Input]

Manually sets the IP address.

The IP address for various items can be set in [IP Address], [Subnet Mask] and [Default Gateway].

[IP Address]

Sets the IP address.

[Subnet Mask]

[Default Gateway]

/

Moves the cursor position.

[Delete]

Deletes all numerical values in delimiters where the cursor is located.

Remarks

-

Reference

-

Screen access

Control panel - Utility/Counter - [Administrator Setting] - [Network Setting] - [NIC Settings] - [TCP/IP Settings] - [IPv4 Settings]

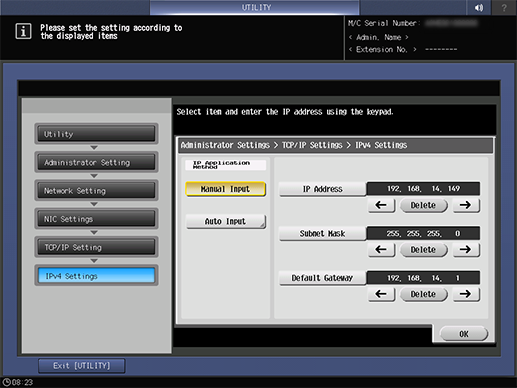

Procedure

1
Press [Manual Input].
2
Select items to set IP address.
3
Move cursor to delimiter to be entered.
4
Enter the values using Control panel - Keypad.
5
Press [OK].
