[ESP Encryption Algorithm]
Overview
Set encryption algorithm used in ESP encryption.
NOTICE
- Following settings are required to use this function.
- Set [Security Protocol] to [ESP]
Reference
- For details about [Security Protocol], refer to [Security Protocol].
Specifications
Category | Network / Security | ||
Location | Machine | Control Panel | |
Printer driver | - | ||
Application | - | ||
Required options | - | ||
Required items | - | ||
Setting items | [AES-CBC] | Select encryption algorithm used to generate the common key. Sets key length* when any of the following is selected. [AES-CBC] [AES-CTR] [AES-GCM-64] [AES-GCM] *: Value that indicates the size of data (encryption key) used in encryption and decoding | |
[3DES-CBC] | |||
[NULL] | |||
[AES-CTR] | |||
[AES-GCM-64] | |||
[AES-GCM] | |||
[ENC-NULL-AES-GMAC] | |||
Remarks | - | ||
Reference | - | ||
Screen access | Control panel - Utility/Counter - [Administrator Setting] - [Network Setting] - [NIC Settings] - [TCP/IP Settings] - [IPsec Settings] - [IPsec Settings] - [IPsec SA Settings] - [Edit] - [IKEv2] | ||
Procedure
Configure settings of AES key length when [AES-CBC], [AES-CTR], [AES-GCM-64], [AES-GCM] or [ENC-NULL-AES-GMAC] is selected.
1
Select [AES-CBC], [AES-CTR], [AES-GCM-64], [AES-GCM] or [ENC-NULL-AES-GMAC].

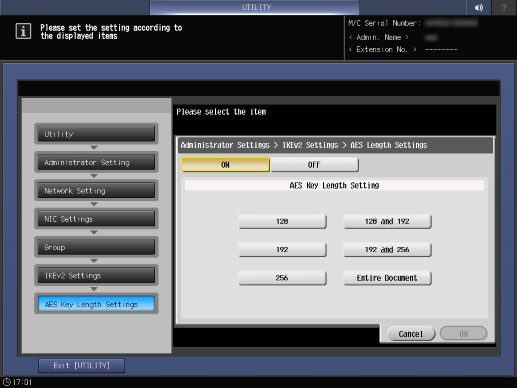

The setting screen is displayed.
2
Press [ON] or [OFF].
3
Key length is selected when [ON] is selected.
4
Press [OK].
