Administrator Setting | [2-Side Slitting Adjustment]

[2-Side Slitting Adjustment]

Adjust the slitting widths of the top and bottom sides on the saddle stitcher.

Make this adjustment when there is a problem with the printout finishing.

Category		Adjustment / Maintenance
Location	Machine	Touch Panel
	Printer driver	-
	Application	-
Required options		Saddle Stitcher SD-513 with Trimmer Unit TU-503 mounted
Required items		-
Setting items		[(1)Front]	Adjusts the slitting width of the front side.
		[(2)Rear]	Adjusts the slitting width of the rear side.
		Keypad	Used to enter numeric values.
		[Clear]	Returns the entered numeric value to "0".
		[Set]	Sets the numeric value entered using the keypad to the selected setting item.
Remarks		-
Reference		-

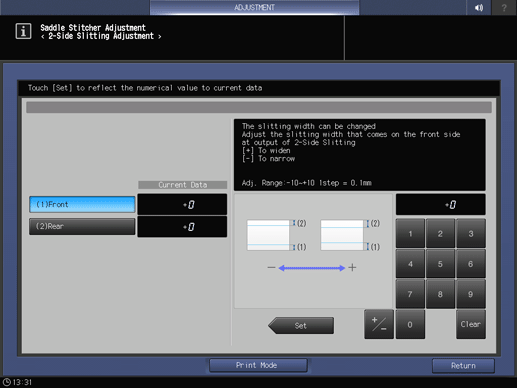

Screen access		Touch panel - [MACHINE] - [Adjustment] - [Finisher Adjustment] - [Saddle Stitcher Adjustment] - [2-Side Slitting Adjustment]
		Control panel - Utility/Counter - [Administrator Setting] - [System Setting] - [Expert Adjustment] - [Finisher Adjustment] - [Saddle Stitcher Adjustment] - [2-Side Slitting Adjustment]

Select [(1)Front] or [(2)Rear].

Press [Print Mode].

Load A3 w or 11 e 17 w paper into any paper tray, and select that paper tray.

Press Start on the Control panel.

A sample is output.

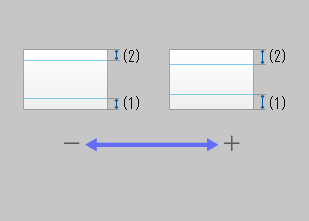

Measure length "a" of the output paper, and then check the difference between the measurement value and the set value.

Standard value: Setting value -a = within -0.5 mm to +0.5 mm

If any adjustments are required, press [Exit PrintMode] to return to the setting screen.

Use the on-screen keypad to enter the numeric value.

Use [+]/[-] to select the plus or minus of the numeric value. To change [Current Data], press [Set].

[Adj. Range:-10~+10 1step = 0.1mm]

Repeat step 2 to step 7 until the desired result is obtained.
