[Granularity Setting]
Overview
Set the granularity priority level to adjust development conditions.

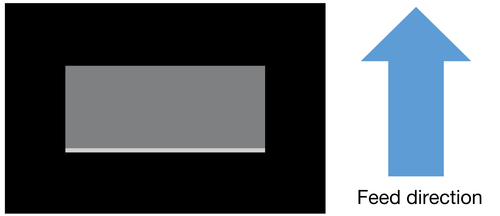

As a lower value is set, the lead-off performance (a phenomenon in which color becomes light at the rear edge in the feed direction of an image with a density difference) reduces, but the granularity increases.
Lead-off
Tips
- If you return to the [MACHINE] screen after changing the setting, [Gamma Automatic Adj.] is performed.
Specifications
Category | Adjustment / Maintenance | ||
Location | Machine | Control Panel | |
Printer driver | - | ||
Application | - | ||
Required options | - | ||
Required items | - | ||
Setting items | -[+3(Normal)] | Places top priority on overall image quality. | |
[+2] | Sets to Normal. | ||
[+1] | Prioritizes granularity over lead-off performance. | ||
Remarks | -: Default | ||
Reference | - | ||

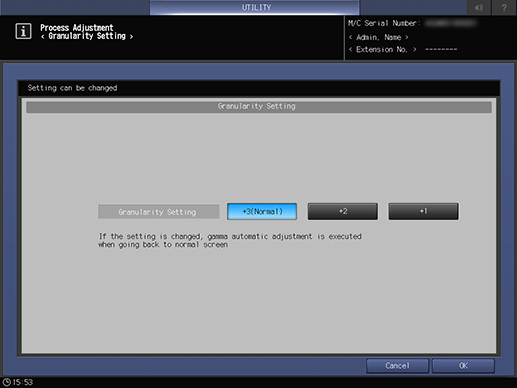

Screen access | Control panel - Utility/Counter - [Administrator Setting] - [System Setting] - [Expert Adjustment] - [Process Adjustment] - [Granularity Setting] | ||
Procedure
1
Select the setting value.
2
Press [OK].
