Screen

Overview
Screen Access
Screen

Overview

Configure settings of IKEv1 settings necessary for generation of shared keys used in IPsec SA communication.

Screen Access

Control panel - Utility/Counter - [Administrator Setting] - [Network Setting] - [NIC Settings] - [TCP/IP Settings] - [IPsec Settings] - [IPsec Settings] - [IPsec SA Settings] - [Edit] - [IKEv1]

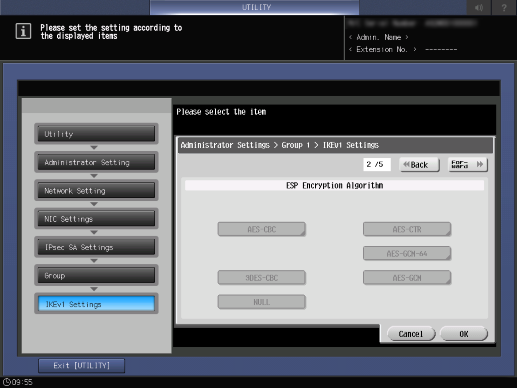

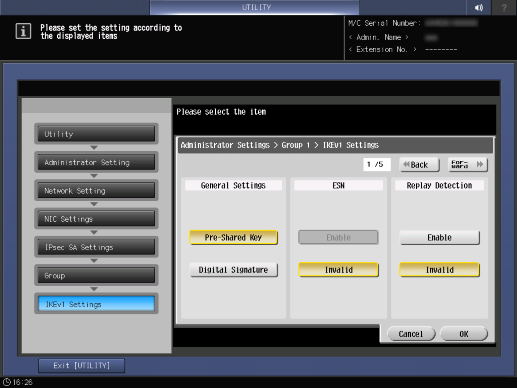

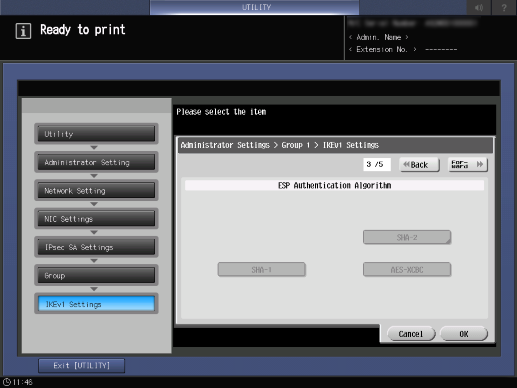

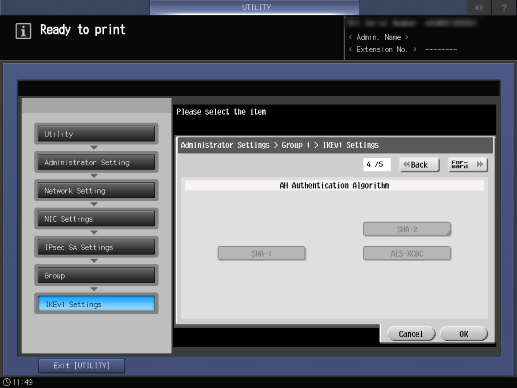

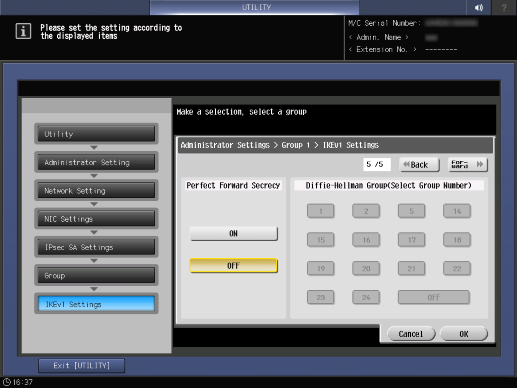

Screen

Common keys

Key name

Description

[Back]

Moves to the previous screen.

[For-ward]

Move to previous screen.

[Cancel]

Moves to the previous screen without saving the settings.

[OK]

Saves the settings and moves to the previous screen.
