[Clamp CD Width Adjustment]
Overview
Adjust the alignment width in the vertical direction (crosswise direction) of the body in the clamp section.
Make this adjustment when misalignment or distortion occurs in the top and bottom sides of the body during perfect binding using Perfect Binder PB-503.
Tips
- If a numeric value is entered in [Offset for All Size], it is applied to all the paper sizes. If a numeric value is entered for a specific paper size, the setting value becomes the sum of the entered value of the specific paper size and the entered value of [Offset for All Size].
Specifications
Category | Adjustment / Maintenance | ||
Location | Machine | Touch Panel | |
Printer driver | - | ||
Application | - | ||
Required options | Perfect Binder PB-503 | ||
Required items | - | ||
Setting items | [Offset for All Size] | Sets the alignment width common to all sizes. | |
Paper size selection key | Selects the paper size to adjust. | ||
[+] / [,] | Switches the paper size page. | ||
[Set] | Sets the numeric value entered using the keypad to the selected setting item. | ||
Remarks | The sizes referred to in this section are those of bodies corresponding to cover sizes. | ||
Reference | - | ||

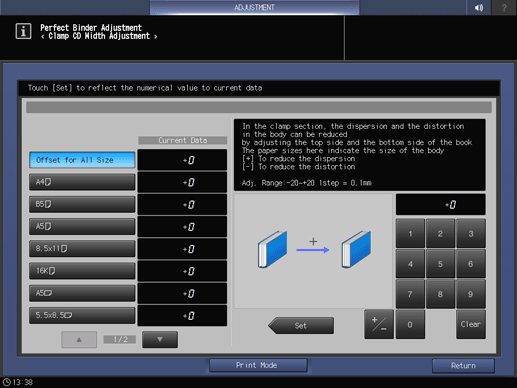

Screen access | Touch panel - [MACHINE] - [Adjustment] - [Finisher Adjustment] - [Perfect Binder Adjustment] - [Clamp CD Width Adjustment] | ||
Control panel - Utility/Counter - [Administrator Setting] - [System Setting] - [Expert Adjustment] - [Finisher Adjustment] - [Perfect Binder Adjustment] - [Clamp CD Width Adjustment] | |||
Procedure
1
Load covers into the Perfect binder cover tray or any paper tray.
When using any paper tray, you need to set a cover tray by selecting [Perfect Bind] of [Output Setting]. For details, refer to [Cover Tray].
2
Load body paper into any paper tray.
3
Select the key of the paper size you want to adjust.
4
Press [Print Mode].
5
Select the tray in which body paper was loaded in step 2.
6
Press Start on the Control panel.
A perfect binding sample is output.
7
Check whether the main scanning direction of the body is unified on all pages.
8
If any adjustments are required, press [Exit PrintMode] to return to the setting screen.
9
Use the on-screen keypad to enter the numeric value.
Use [+]/[-] to select the plus or minus of the numeric value. To change [Current Data], press [Set].
(-) To reduce the distortion, (+) To reduce the misalignment
[Adj. Range:-20~+20 1step = 0.1mm]
10
Repeat step 4 to step 9 until the desired result is obtained.
