[2 Position Staple]
Overview
Adjust the center position when stapling with 2 staples on the saddle stitcher.
Make this adjustment when the staple position deviates from the standard value.
NOTICE
- To make correct adjustments, configure the following setting in advance.
- Perform [Saddle Stitcher Adjustment] in [Half-Fold Position Adj.].
Reference
- For details about [Half-Fold Position Adj.], refer to [Half-Fold Position Adj.].
Specifications
Category | Adjustment / Maintenance | ||
Location | Machine | Touch Panel | |
Printer driver | - | ||
Application | - | ||
Required options | Saddle Stitcher SD-513 | ||
Required items | - | ||
Setting items | [Current Data] | Displays the adjustment value of the staple center position. | |
Keypad | Used to enter numeric values. | ||
[Clear] | Returns the entered numeric value to "0". | ||
[Set] | Sets the numeric value entered using the keypad. | ||
Remarks | - | ||
Reference | - | ||
Screen access | Touch panel - [MACHINE] - [Adjustment] - [Finisher Adjustment] - [Saddle Stitcher Adjustment] - [Staple Center Position] - [2 Position Staple] | ||
Control panel - Utility/Counter - [Administrator Setting] - [System Setting] - [Expert Adjustment] - [Finisher Adjustment] - [Saddle Stitcher Adjustment] - [Staple Center Position] - [2 Position Staple] | |||
Procedure
1
Press [Print Mode].
2
Load A3 w or 11 e 17 w paper into any paper tray, and select that paper tray.
3
Press Start on the Control panel.
A sample is output.
4
Check the misalignment between the staple center position and paper center position.
5
If any adjustments are required, press [Exit PrintMode] to return to the setting screen.
6

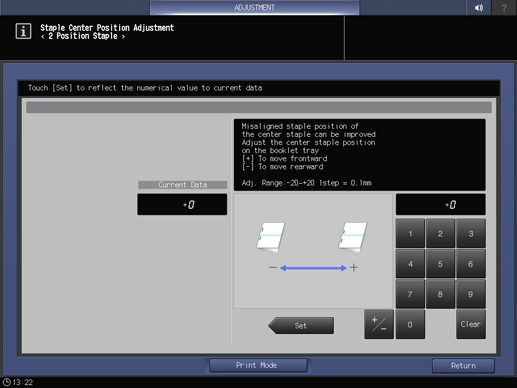

Use the on-screen keypad to enter the numeric value.
Use [+]/[-] to select the plus or minus of the numeric value. To change [Current Data], press [Set].
[Adj. Range:-20~+20 1step = 0.1mm]
7
Repeat step 1 to step 6 until the desired result is obtained.
