[1st Trans. Dis-elec. Output]
Overview
Set the neutralization voltages of yellow, magenta, cyan, and black of the 1st transfer belt.
You can measure the AC and DC voltage values of the 1st transfer neutralization pole.
Specifications
Category | Adjustment / Maintenance | ||
Location | Machine | Control Panel | |
Printer driver | - | ||
Application | - | ||
Required options | - | ||
Required items | - | ||
Setting items | -[Standard] | Sets output conditions of the 1st transfer neutralization pole. Sets the appropriate value for [Yellow], [Magenta], [Cyan], and [Black] individually. [Condition1]: Increases the DC voltage. [Condition2]: Increases the AC voltage. | |
[Condition1] | |||
[Condition2] | |||
Remarks | -: Default | ||
Reference | - | ||

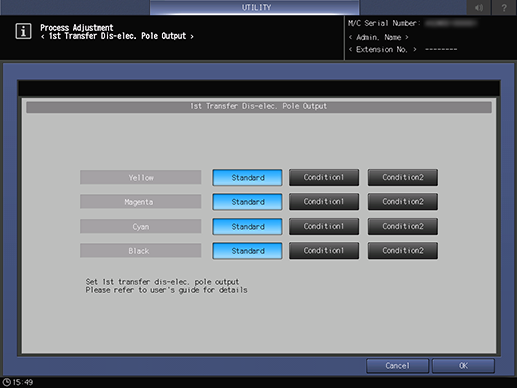

Screen access | Control panel - Utility/Counter - [Administrator Setting] - [System Setting] - [Expert Adjustment] - [Process Adjustment] - [1st Trans. Dis-elec. Output] | ||
Procedure
1
Select conditions for each of [Yellow], [Magenta], [Cyan], and [Black].
2
Press [OK].
