[Clamp FD Position Adj.]
Overview
Adjust the alignment width in the fore-edge direction (paper feed direction) of the body in the clamp unit.
Make this adjustment when misalignment or distortion occurs in the fore-edge direction of the body during perfect binding using Perfect Binder PB-503.
Tips
- If a numeric value is entered in [Offset for All Size], it is applied to all the paper sizes. If a numeric value is entered for a specific paper size, the setting value becomes the sum of the entered value of the specific paper size and the entered value of [Offset for All Size].
Specifications
Category | Adjustment / Maintenance | ||
Location | Machine | Touch Panel | |
Printer driver | - | ||
Application | - | ||
Required options | Perfect Binder PB-503 | ||
Required items | - | ||
Setting items | [Offset for All Size] | Sets the alignment width common to all sizes. | |
Paper size selection key | Selects the paper size to adjust. | ||
[+] / [,] | Switches the paper size page. | ||
[Set] | Sets the numeric value entered using the keypad to the selected setting item. | ||
Remarks | The sizes referred to in this section are those of bodies corresponding to cover sizes. | ||
Reference | - | ||

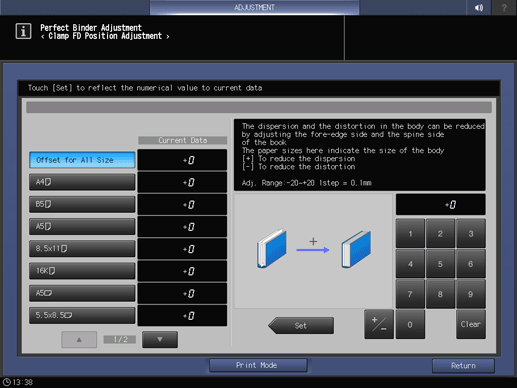

Screen access | Touch panel - [Adjustment] - [Finisher Adjustment] - [Perfect Binder Adjustment] - [Clamp FD Position Adj.] | ||
Control panel - Utility/Counter - [Administrator Setting] - [System Setting] - [Expert Adjustment] - [Finisher Adjustment] - [Perfect Binder Adjustment] - [Clamp FD Position Adj.] | |||
Procedure
1
Load covers into the Perfect binder cover tray or any paper tray.
When using any paper tray, you need to set a cover tray by selecting [Perfect Bind] of [Output Setting]. For details, refer to [Cover Tray].
2
Load body paper into any paper tray.
3
Select the key of the paper size you want to adjust.
4
Press [Print Mode].
5
Select the tray in which body paper was loaded in step 2.
6
Press Start on the Control panel.
A perfect binding sample is output.
7
Check whether the sub scanning direction of the body is unified on all pages.
8
If any adjustments are required, press [Exit PrintMode] to return to the setting screen.
9
Use the on-screen keypad to enter the numeric value.
Use [+]/[-] to select the plus or minus of the numeric value. To change [Current Data], press [Set].
(-) To reduce the distortion, (+) To reduce the misalignment
[Adj. Range:-20~+20 1step = 0.1mm]
10
Repeat step 4 to step 9 until the desired result is obtained.
