User's Guide

> Administrator Setting > [E-mail Initial Setting] > Screen

Screen

Overview
Screen Access
Screen

Overview

Configure settings to send/receive email on system.

Set email default settings and perform send/receive test.

Tips
  • This setting is done when using CS Remote Care. For details, contact your service representative.

Screen Access

Control panel - Utility/Counter - [Administrator Setting] - [Network Setting] - [E-mail Initial Setting]

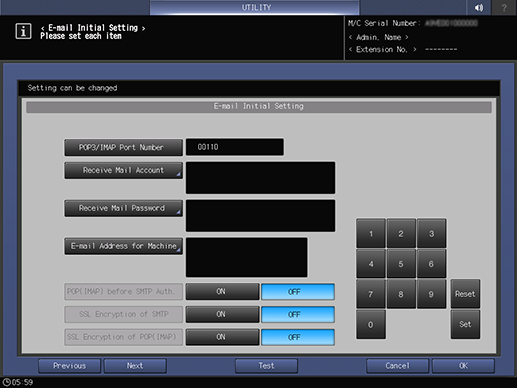

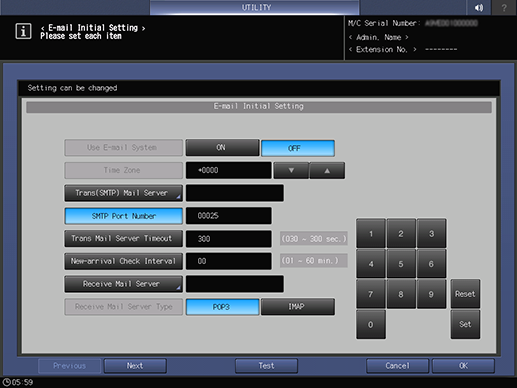

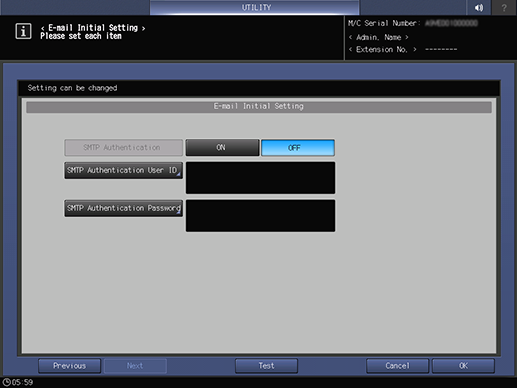

Screen

Common keys

Key name

Description

[Cancel]

Moves to the previous screen without saving the settings.

[OK]

Saves the settings and moves to the previous screen.

[Previous]

Moves to the previous page.

[Next]

Moves to the next page.

Keypad

Enter numbers.

[Reset]

Resets selected setting values.

[Set]

If pressed, the part that can be entered next is inverted and displayed.

[Test]

You can perform send/receive test and check whether settings are correct.
