[Erase Operation Setting]

Overview
Specifications
Procedure

Overview

Configure detailed settings for when [NoImageAreaErase] is selected using [Application] provided on [COPY] and [SCAN] screens.

Tips
Tips
  • If the original is detected as a smaller one than the actual, set [Original Density] to [Dark] or [Dark+].
  • If the original is detected as a larger one than the actual, set [Original Density] to [Light] or [Light+].

Specifications

Category

Copy / Scan

Location

Machine

Control Panel

Printer driver

-

Application

-

Required options

-

Required items

-

Setting items

[Erase Mode]

-[Oblique Erase]

Sets area as document area without including shadow of the paper and erases the outside area.　

[Rectangle Erase]

Sets area as document area, including shadow of the paper and erases the outside area.

[Original Density]

[Dark+]

Selects [Original Density] from 5 stages, if [Oblique Erase] or [Rectangle Erase] are selected.

[Dark]

-[Normal]

[Light]

[Light+]

Remarks

-: Default

Reference

-

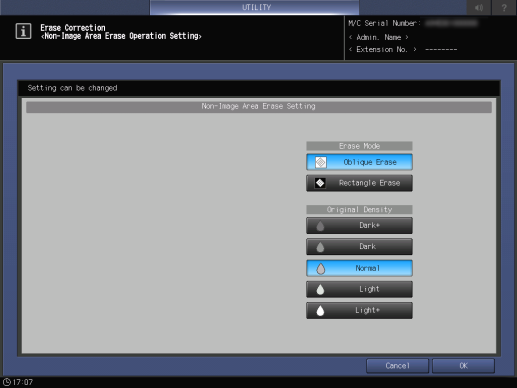

Screen access

Control panel - Utility/Counter - [Administrator Setting] - [System Setting] - [Expert Adjustment] - [Erase Correction] - [Erase Operation Setting]

Procedure

1
Select [Erase Mode] and [Original Density].
2
Press [OK].
