[Communication Check]
Overview
You can check the IPsec communication error log.
Press [Communication Error Log] to display a list of communication error IP address, error details, and time of occurrence.
Tips
- Setting is required to display [Check Connection]. For details about a setting example, refer to "Procedure (Displaying the Connection Confirmation)" in [Communication Check].
Specifications
Category | Network / Security, Device Management | ||
Location | Machine | Control Panel | |
Printer driver | - | ||
Application | - | ||
Required options | - | ||
Required items | - | ||
Setting items | [Check Connection] | Enter the IP address and check the connection status. | |
[Communication Error Log] | Log of error occurring in [Check Connection] is displayed. | ||
[Close] | Returns to the previous screen. | ||
[Exit [UTILITY]] | Closes the [UTILITY] screen. | ||
Remarks | - | ||
Reference | - | ||
Screen access | Control panel - Utility/Counter - [Administrator Setting] - [Network Setting] - [NIC Settings] - [TCP/IP Settings] - [IPsec Settings] - [IPsec Settings] - [Communication Check] - [Check Connection] - [IP Address] | ||
Procedure (Displaying [Check Connection])
1
Set [IKE Settings] - [IKEv1 Settings].
Set each setting item as shown below. For details about [IKEv1 Settings], refer to [IKEv1 Settings].
Setting items | Setting |
|---|---|
[Encryption Algorithm] | [3DES-CBC] |
[Authentication Algorithm] | [SHA-1] |
[Diffie-Hellman Group] | [Group 2] |
2
Sets any [Group] in [IPsec SA Settings].
Set each setting item as shown below. For details about [IPsec SA Settings], and [IKEv1], refer to [IKEv1].
Setting items | Setting | |
|---|---|---|
[Encapsulation Mode] | [Transport Mode] | |
[Security Protocol] | [AH] | |
[Key Exchange Method] | [IKEv1] | |
[General Settings] | [Pre-Shared Key] | |
[ESN] | [Invalid] | |
[Repley Detection] | [Enable] | |
[AH Authentication Algorithm] | [SHA-1] | |
[Perfect Forward Secrecy] | [OFF] | |
3
Sets any [Group] in [Peer].
Set each setting item as shown below. For details about [Peer], refer to [Edit].
Setting items | Setting |
|---|---|
[Addressing Mode] | [Unicast] |
[IP Address] | Enter the IP address. |
[Pre-Shared Key Text] | Enter shared text string. |
4
Sets any [Group] in [Protocol Setting].
Set each setting item as shown below. For details about [Protocol Setting], refer to [Edit].
Setting items | Setting |
|---|---|
[Protocol Identification Setting] | [Do Not Set] |
5
In [Enable IPsec] - [IPsec Policy], select the group specified in steps 1 to 4.
For details about [IPsec Policy], refer to [IPsec Policy].
Procedure (Checking the IP Address Connection Status)
Checks IP address connection status.
1

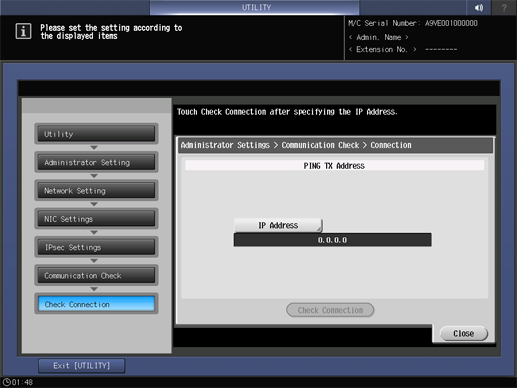

Press [Check Connection].
2
Press [IP Address].
The input screen is displayed.
3

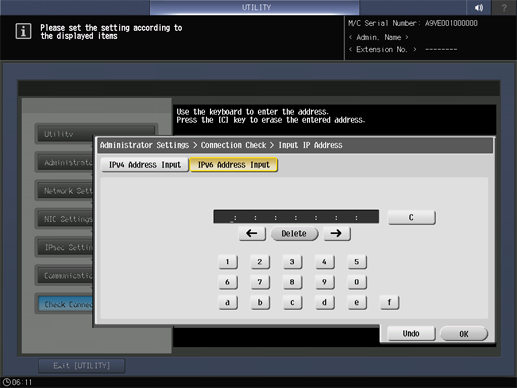

Select [IPv4 Address Input] or [IPv6 Address Input] and enter IP address.
The displayed screen differs depending on the selected key.
For details about how to enter characters, refer to Entering Text.
When [Undo] is pressed, the numerical value returns to the value before corrections (default: 0.0.0.0.).
4
Press [OK].
5
Press [Check Connection].
Connection status of entered IP address is displayed.
