User's Guide

> Administrator Setting > [Staple Finisher(Fold) Adj.] > [Tri-Fold Adjustment] > Screen

Screen

Overview
Screen Access
Screen

Overview

Adjust the tri-fold function for Saddle Stitcher SD-510 mounted on the finisher.

Arrange the finishing of printouts by adjusting the tri-fold position and the push-in amount of the alignment plate.

Screen Access

Control panel - Utility/Counter - [Administrator Setting] - [System Setting] - [Expert Adjustment] - [Finisher Adjustment] - [Staple Finisher Adjustment] - [Staple Finisher(Fold) Adj.] - [Tri-Fold Adjustment]

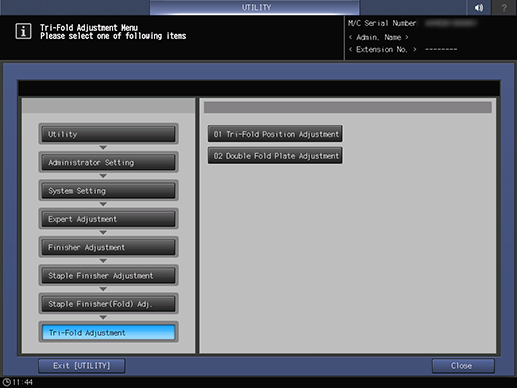

Screen

Common keys

Key name

Description

[Print Mode]

Outputs a sample for adjustment.

[Close]

Moves to the previous screen.

[Return]

Moves to the previous screen.

[Exit [UTILITY]]

Closes the [UTILITY] screen.
