Administrator Setting | [Staple Center Position]

[Staple Center Position]

Adjust the center position when stapling on the saddle stitcher.

Make this adjustment when the staple position deviates from the standard value.

NOTICE

Reference

For details about [Staple Paper Width Adj.], refer to [Staple Paper Width Adj.].

Category		Adjustment / Maintenance
Location	Machine	Touch Panel
	Printer driver	-
	Application	-
Required options		SaddleStitcher SD-506
Required items		-

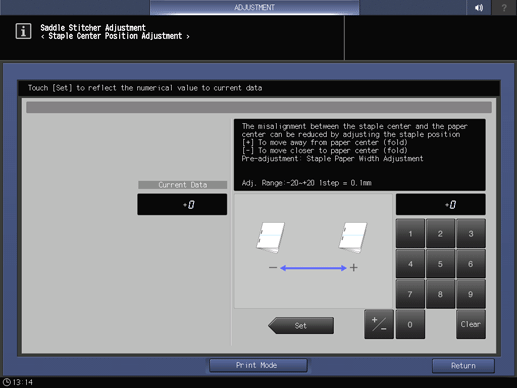

Setting items		[Current Data]	Displays the adjustment value of the staple center position.
		Keypad	Used to enter numeric values.
		[Clear]	Returns the entered numeric value to "0".
		[Set]	Sets the numeric value entered using the keypad.
Remarks		-
Reference		-
Screen access		Touch panel - [MACHINE] - [Adjustment] - [Finisher Adjustment] - [Saddle Stitcher Adjustment] - [Staple Center Position]
		Control panel - Utility/Counter - [Administrator Setting] - [System Setting] - [Expert Adjustment] - [Finisher Adjustment] - [Saddle Stitcher Adjustment] - [Staple Center Position]

Press [Print Mode].

Load the desired paper into a paper tray, and select that paper tray.

Before printing, always pull out the Fold/Staple mode tray. Otherwise, a sample is not output even if you press Start on the Control panel.

Press Start on the Control panel.

A sample is output.

Check the misalignment of "a" between the paper center position and staple center position of the output paper.

Standard value: a = -2.0 mm to +2.0 mm or less

[1] Paper center [2] Staple center position

If any adjustments are required, press [Exit PrintMode] to return to the setting screen.

Use the on-screen keypad to enter the numeric value.

Use [+]/[-] to select the plus or minus of the numeric value. To change [Current Data], press [Set].

[Adj. Range:-20~+20 1step = 0.1mm]

Repeat step 1 to step 6 until the desired result is obtained.
