[Original Tray Pre-rise Set.]
Overview
Adjust the standby position of the original feed tray of the ADF.
Adjusting to the appropriate position reduces the length of time required to start delivery of the original.
Specifications
Category | Adjustment / Maintenance | ||
Location | Machine | Touch Panel, Control Panel | |
Printer driver | - | ||
Application | - | ||
Required options | Paper Feeder Unit PF-713 | ||
Required items | - | ||
Setting items | [ON] | Lifts the ADF paper tray in advance. | |
[OFF] | Does not lift the ADF paper tray in advance. | ||
[Paper Tray] | Sets the standby position of the paper tray. | ||
Keypad | Used to enter numeric values. | ||
[+] / [,] | Moves the standby position of the paper tray up or down. | ||
[Clear] | Returns the entered numeric value to "0". | ||
Remarks | - | ||
Reference | - | ||

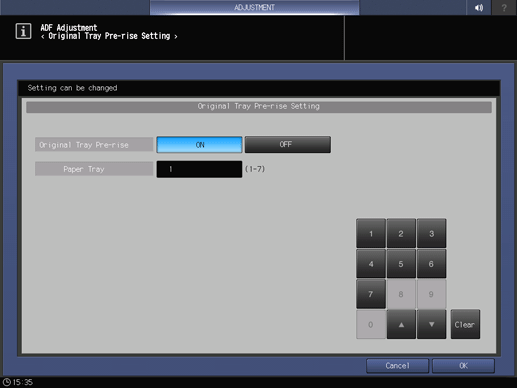

Screen access | Touch panel - [MACHINE] - [Adjustment] - [ADF Adjustment] - [Original Tray Pre-rise Set.] | ||
Control panel - Utility/Counter - [Administrator Setting] - [System Setting] - [Expert Adjustment] - [ADF Adjustment] - [Original Tray Pre-rise Set.] | |||
Procedure
1
Select [ON].
2
Use the on-screen keypad or [+]/[,] to enter the numeric value.
Range: 1 to 7
The higher the numeric value becomes, the lower the standby position will be.
