User's Guide

> Administrator Setting > [Quick Security Setting] > [Quick IP Filtering] - [Filtering Method]

[Quick IP Filtering] - [Filtering Method]

Overview
Specifications

Overview

Select a filtering method.

The allowable range of the IP addresses or subnet varies depending on the selected filtering method. Select the appropriate method to suit the operating environment of this system.

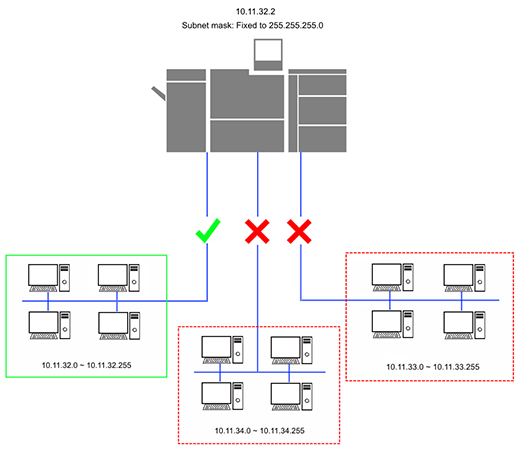

The figure below shows an example when [Sync. IP Address] is selected.

Specifications

Category

Network / Security

Location

Machine

Control Panel

Printer driver

-

Application

-

Required options

-

Required items

-

Setting items

[No Filtering]

Disables IP filtering.

-[Sync. IP Address]

Allows accesses of only the IP addresses in the specified range in IPv4 environment. The subnet mask is fixed to 255.255.255.0.

Allows accesses of only the IP address set to this system and the IP addresses of which the high-order 64 bits are the same in IPv6 environment.

[Sync. Subnet Mask]

Allows accesses of only the IP address set to this system and the IP addresses included in the same sub network.

Remarks

-: Default

Reference

-

Screen access

Control panel - Utility/Counter - [Quick Security Setting] - [Quick IP Filtering]

Control panel - Utility/Counter - [Administrator Setting] - [Network Setting] - [Quick Security Setting] - [Quick IP Filtering]
