User's Guide

> Administrator Setting > [Staple Finisher(Punch) Adj.] > [Mis-centering Detection Set.]

[Mis-centering Detection Set.]

Overview
Specifications

Overview

Set conditions when the sensor detects mis-centering.

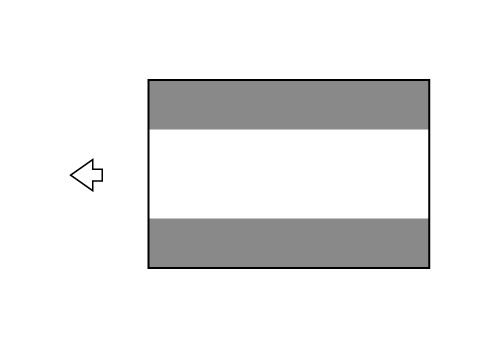

When an image is located at the paper edge as shown below, set [Without White Bar].

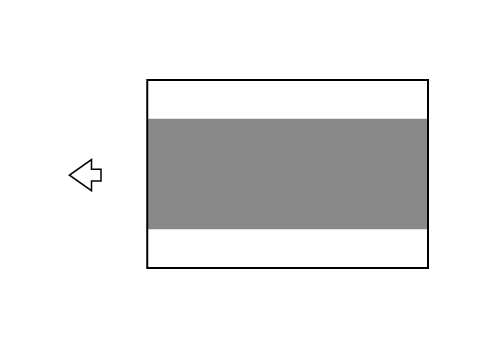

When the paper edge is blank and does not have any images as shown below, select [With White Bar].

Specifications

Category

Adjustment / Maintenance

Location

Machine

Touch Panel

Printer driver

-

Application

-

Required options

Finisher FS-541 with Punch Unit PK-525 mounted

Required items

-

Setting items

-[With White Bar]

Sets this item when there are no images at the paper edge.

[Without White Bar]

Sets this item when there is an image at the paper edge.

Remarks

-: Default

Reference

-

Screen access

Touch panel - [MACHINE] - [Adjustment] - [Finisher Adjustment] - [Staple Finisher Adjustment] - [Staple Finisher(Punch) Adj.] - [Mis-centering Detection Set.]
