User's Guide

> Administrator Setting > [LDAP Settings] > [Setting Up LDAP] > Screen

Screen

Overview
Screen Access
Screen

Overview

Register LDAP server.

Screen Access

Control panel - Utility/Counter - [Administrator Setting] - [Network Setting] - [NIC Settings] - [LDAP Settings] - [Setting Up LDAP]

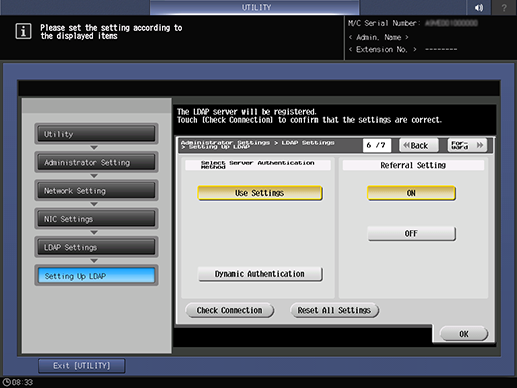

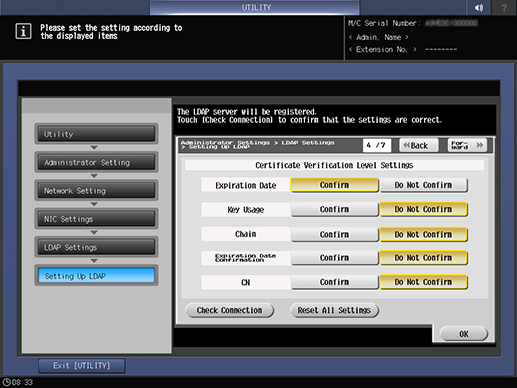

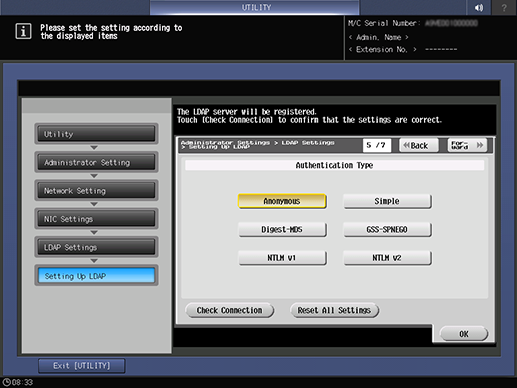

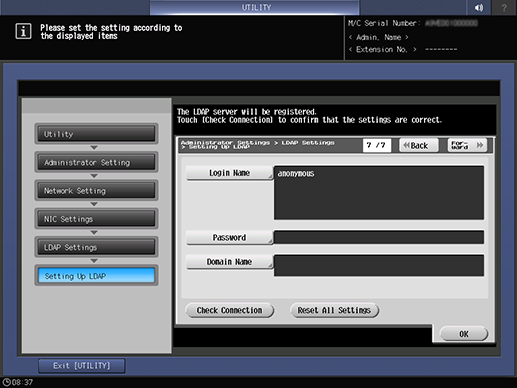

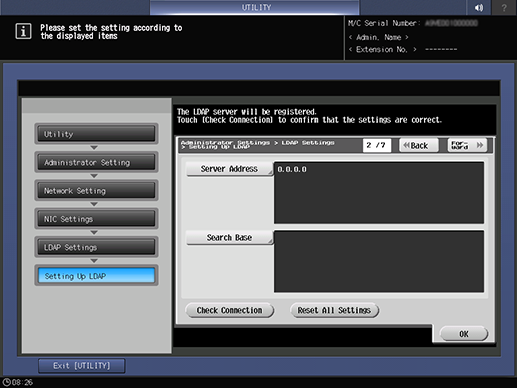

Screen

Common keys

Key name

Description

[Back]

Moves to the previous screen.

[For-ward]

Moves to the next screen.

[OK]

Saves the settings and moves to the previous screen.

[Check Connection]

Checks connection with LDAP server.

This is displayed if [Enabling LDAP] is [ON].

[Reset All Settings]

Returns all settings to their defaults.

[Exit [UTILITY]]

Closes the [UTILITY] screen.
