[Staple Paper Width Adj.]
Overview
Adjust the pitch of the alignment plate for stapling on the saddle stitcher to reduce misalignment and distortion in the paper stack.
Make this adjustment when misalignment or distortion occurs on the paper stack during stapling.
Tips
- If a numeric value is entered in [Offset for All Size], it is applied to all the paper sizes. If a numeric value is entered for a specific paper size, the setting value becomes the sum of the entered value of the specific paper size and the entered value of [Offset for All Size].
Specifications
Category | Adjustment / Maintenance | ||
Location | Machine | Touch Panel | |
Printer driver | - | ||
Application | - | ||
Required options | Saddle Stitcher SD-513 | ||
Required items | - | ||
Setting items | [Offset for All Size] | Sets the alignment pitch common to all sizes. | |
Paper size selection key | Adjusts the alignment pitch in use of each size. | ||
[+] / [,] | Switches the paper size page. | ||
Keypad | Used to enter numeric values. | ||
[Clear] | Returns the entered numeric value to "0". | ||
[Set] | Sets the numeric value entered using the keypad to the selected setting item. | ||
Remarks | - | ||
Reference | - | ||

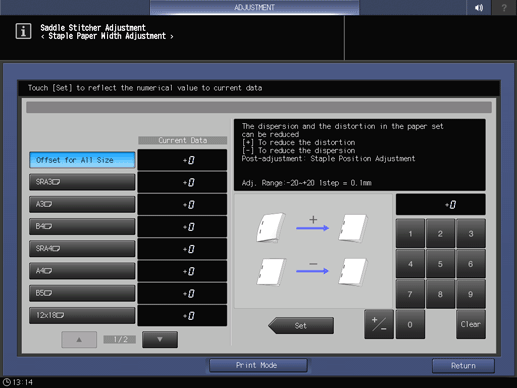

Screen access | Touch panel - [MACHINE] - [Adjustment] - [Finisher Adjustment] - [Saddle Stitcher Adjustment] - [Staple Paper Width Adj.] | ||
Control panel - Utility/Counter - [Administrator Setting] - [System Setting] - [Expert Adjustment] - [Finisher Adjustment] - [Saddle Stitcher Adjustment] - [Staple Paper Width Adj.] | |||
Procedure
1
Select the key of the paper size you want to adjust.
2
Press [Print Mode].
3
Load the paper of the size to be adjusted into any tray, and select that paper tray.
4
Press Start on the Control panel.
A sample is output.
5
Check for misalignment "a" and distortion "b" in the paper stack.
a: Misalignment occurs if the specified paper width is wider than the paper width.
b: A distortion occurs If the specified paper width is narrower than the actual paper width.
Standard value: a = 1 mm or less
6
If any adjustments are required, press [Exit PrintMode] to return to the setting screen.
7
Use the on-screen keypad to enter the numeric value.
Use [+]/[-] to select the plus or minus of the numeric value. To change [Current Data], press [Set].
[Adj. Range:-20~+20 1step = 0.1mm]
8
Repeat step 2 to step 7 until the desired result is obtained.
