[HDD ALL Backup]
Overview
Back up data (reference images and automatic inspection reports) in the Auto Inspection Unit UK-301 HDD to a USB external storage device.
NOTICE
- The following setting is required to use this function.
- Set [Enhanced Security Mode] to [OFF].
Tips
- During backup operations, the system automatically enters the power-saving state and hence no other functions can be used. You will not be able to return to the previous screen if an error interrupts the operation after the system enters the power-saving state.
- To cancel the backup operations after they have begun, set the Sub power switch to OFF. Do not set Main power switch to OFF.
Tips
Save the following data in the Auto Inspection Unit UK-301, HDD to an external storage device.
- Reference image data
- Automatic inspection report data
- Reference image list management data
- Automatic inspection report list management data
Reference
- For details about [Enhanced Security Mode], refer to [Enhanced Security Mode].
Conditions for backup operations
- Ensure that Auto Inspection Unit UK-301 is mounted.
- Ensure that the external storage media used for backup is securely connected to the USB connection port of Auto Inspection Unit UK-301.
- Ensure that only one external storage medium used for backup is connected
- Ensure that Enhanced Security mode is not set
Conditions for external storage device used for backup
- The device is formatted (FAT32 or ext4)
- There is sufficient capacity to complete the backup
- Since the USB connection port of Auto Inspection Unit UK-301 only supports low-power devices, storage media that require a large amount of power should be powered using an external power source
Specifications
Category | Network / Security, Device Management | ||
Location | Machine | Control Panel | |
Printer driver | - | ||
Application | - | ||
Required options | All the following optional devices are required. Intelligent Quality Optimizer IQ-501 Auto Inspection Unit UK-301 Video Interface Kit VI-514 Video Interface Kit VI-515 | ||
Required items | USB external storage device | ||
Setting items | [Start] | Starts backup of all data on the Auto Inspection Unit UK-301 HDD. | |
[Return] | Moves to the previous screen. | ||
Remarks | - | ||
Reference | - | ||
Screen access | Control panel - Utility/Counter - [Administrator Setting] - [Security Setting (UK-301)] - [HDD ALL Backup] | ||
Procedure
1
Connect the external storage device used for backing up to USB connection port of Auto Inspection Unit UK-301.
Make sure you use an external storage device that meets all these conditions.
2

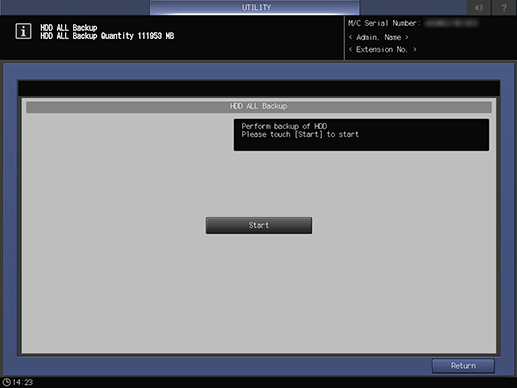

Press [Start].
The total size of backup data is displayed in the message display area on the screen.
If the capacity of external storage media is not sufficient to store the backup data, an error dialog box will appear. Press [Close] to cancel the backup.
An error message dialog box will be displayed if the backup operations fail. Press [Close] to retry backup.
If you do not want to retry backup, turn the Sub power switch off and back on again.
3
After operation is completed, turn the Sub power switch off and back on again.
