User's Guide

> Administrator Setting > [Peer] > [Edit] > Screen

Screen

Overview
Screen Access

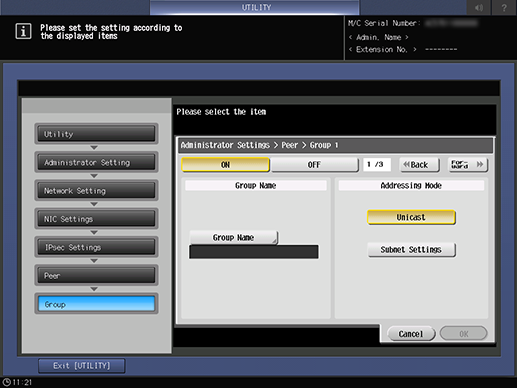

Screen

Overview

Set communication recipient.

Group name, IP address, etc. can be set for each group.

The displayed screen differs depending on selected [Addressing Mode].

Screen Access

Control panel - Utility/Counter - [Administrator Setting] - [Network Setting] - [NIC Settings] - [TCP/IP Settings] - [IPsec Settings] - [IPsec Settings] - [Peer] - Select one group - [Edit]

Screen

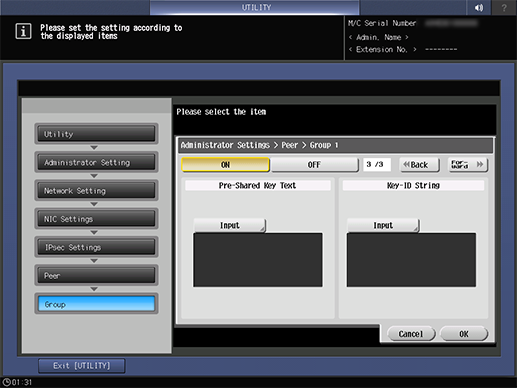

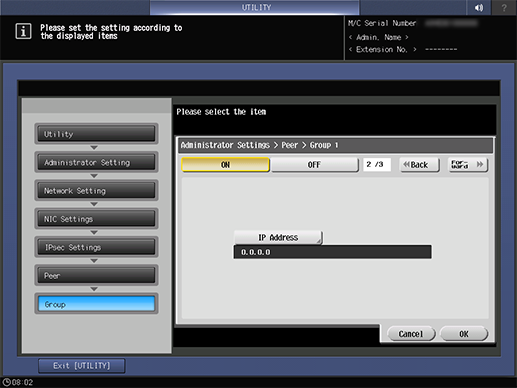

In case [Unicast] is selected

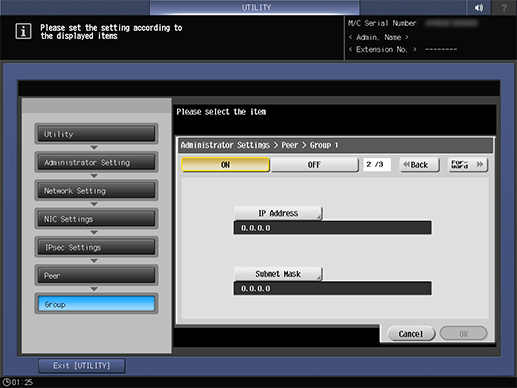

In case [Subnet Settings] is selected

Common keys

Key name

Description

[Back]

Moves to the previous screen.

[For-ward]

Moves to the next screen.

[Cancel]

Moves to the previous screen without saving the settings.

[OK]

Saves the settings and moves to the previous screen.
