[FD-Mag. Adjustment]
Overview
Adjust the magnification in the paper feed direction when printing.
Using this function allows you to make adjustments so that the chart test pattern is output correctly.
Specifications
Category | Adjustment / Maintenance | ||
Location | Machine | Touch Panel, Control Panel | |
Printer driver | - | ||
Application | - | ||
Required options | - | ||
Required items | - | ||
Setting items | Adjustment target selection key | Select the adjustment target. | |
[+] / [,] | Switches the adjustment target page. | ||
Keypad | Used to enter numeric values. | ||
[Clear] | Returns the entered numeric value to "0". | ||
[Set] | Sets the numeric value entered using the on-screen keypad or the Keypad of the Control panel to the selected setting item. | ||
Remarks | The set value is used as the reference value of [Both Sides Adj.] in [Paper Setting]. | ||
Reference | - | ||

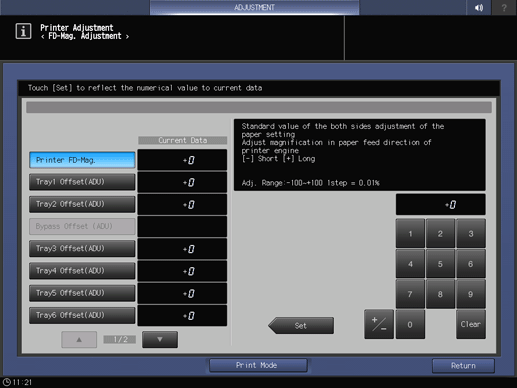

Screen access | Touch panel - [MACHINE] - [Adjustment] - [Machine Adjustment] - [Printer Adjustment] - [FD-Mag. Adjustment] | ||
Control panel - Utility/Counter - [Administrator Setting] - [System Setting] - [Expert Adjustment] - [Printer Adjustment] - [FD-Mag. Adjustment] | |||
Procedure (When Adjusting the Front Side)
1
Press [Printer FD-Mag.].
2
Press [Print Mode].
3
Press [1->1].
4
Load A3 w or 11 e 17 w paper into any paper tray, and select that paper tray.
5
Press Start on the Control panel.
A test chart is output.
For details about the
mark that is printed on the front side of the chart, refer to About Charts.
6
Measure the magnification in the paper feed direction using the scale.
Standard value: ^ 0.5% or less (when full size), within 205.7 mm ^ 1 mm
7
If any adjustments are required, press [Exit PrintMode] to return to the setting screen.
8
Use the on-screen keypad or the Keypad of the Control panel to enter the numeric value.
Use [+ / -] to select the plus or minus of the numeric value. To change [Current Data], press [Set].
[Adj. Range:-100~+100 1step = 0.01%]
9
Repeat step 2 to step 8 until the desired result is obtained.
Procedure (When Adjusting the Back Side)
1
Press the adjustment target selection key to adjust.
Example: For Tray 1, press [Tray1 Offset(ADU)].
2
Press [Print Mode].
3
Press [1->2].
4
Load A3 w or 11 e 17 w paper in the paper tray for adjustment selected in step 1, and select that paper tray.
5
Press Start on the Control panel.
A test chart is output.
The side that does not have the mark is the back side.
6
Measure the magnification of the paper feed direction of the back side using the scale.
Standard value: ^ 0.5% or less (when full size), within 205.7 mm ^ 1 mm
7
If any adjustments are required, press [Exit PrintMode] to return to the setting screen.
8
Use the on-screen keypad or the Keypad of the Control panel to enter the numeric value.
Use [+ / -] to select the plus or minus of the numeric value. To change [Current Data], press [Set].
[Adj. Range:-80~+20 1step = 0.01%]
9
Repeat step 2 to step 8 until the desired result is obtained.
