[Auto Image Adjustment Deviation Check]

Overview
Specifications
Procedure

Overview

Set whether or not to automatically check a deviation.

When [ON] is selected, enter the specified value for deviation (deviation threshold).

Specifications

Category

Device Management, Adjustment / Maintenance

Location

Machine

Control Panel

Printer driver

-

Application

-

Required options

Intelligent Quality Optimizer IQ-501 and Video Interface Kit VI-514

Required items

-

Setting items

-[ON]

Automatically checks deviation.

Selection range: 0.5 mm to 10.0 mm, Default: 2.0 mm

[OFF]

Does not automatically check deviation.

Remarks

-: Default

Reference

-

Screen access

Control panel - Utility/Counter - [User Setting] - [Common Setting]

Control panel - Utility/Counter - [Administrator Setting] - [Common Setting]

Procedure

1
Press [ON].

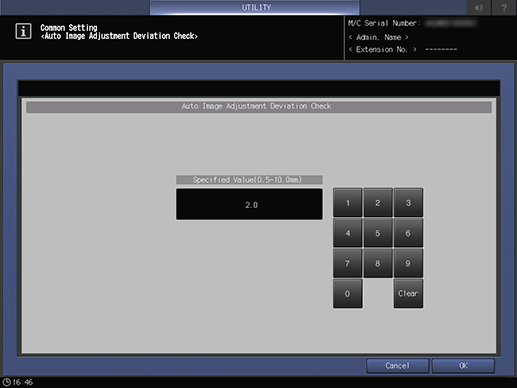

The [Auto Image Adjustment Deviation Check] screen is displayed.

Default: 2.0 mm

2
Use the on-screen keypad to enter the specified value.

Available range: 0.5 mm to 10.0 mm

3
Press [OK].
