[Authentication Algorithm]

Overview
Specifications
Procedure

Overview

Set authentication algorithm* used to generate shared key for IPsec transmission.

*: hash function

Specifications

Category

Network / Security, Device Management

Location

Machine

Control Panel

Printer driver

-

Application

-

Required options

-

Required items

-

Setting items

[SHA-1]

Select authentication algorithm used to generate the common key.

Sets hash value* when [SHA-2] is selected.

*: Value generated from source data (return value of hash function)

[SHA-2]

Remarks

-

Reference

-

Screen access

Control panel - Utility/Counter - [Administrator Setting] - [Network Setting] - [NIC Settings] - [TCP/IP Settings] - [IPsec Settings] - [IPsec Settings] - [IKE Settings] - [IKEv1 Settings]

Procedure

Set hash value when [SHA-2] is selected.
1

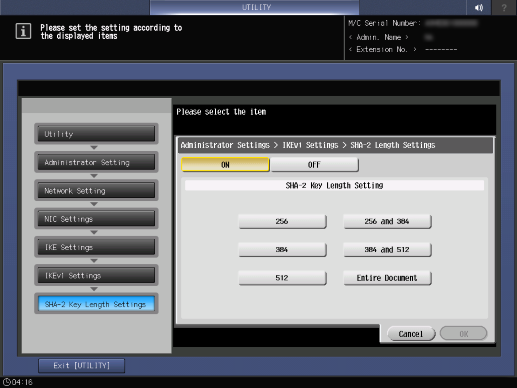

Selects [SHA-2].

The setting screen is displayed.

2
Press [ON] or [OFF].
3
Select hash value when [ON] is selected.
4
Press [OK].
