[RAW Port Number]

Overview
Specifications
Procedure

Overview

Set the port number of the RAW port.

Up to 6 port numbers can be registered.

Tips
  • This function is available when you use PullPrint from the OpenAPI application or convert print data from IWS.

Specifications

Category

Network / Security, Device Management

Location

Machine

Control Panel

Printer driver

-

Application

-

Required options

-

Required items

-

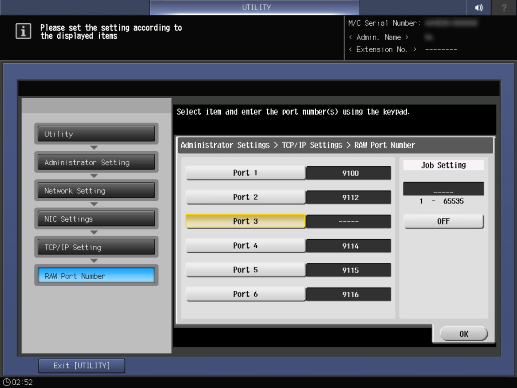

Setting items

[Port 1]

Select the port number of the RAW port.

Range: 1 to 65535

Default:

[Port 1]: 9100

[Port 2]: 9112

[Port 3]: 9113

[Port 4]: 9114

[Port 5]: 9115

[Port 6]: 9116

[Port 2]

[Port 3]

[Port 4]

[Port 5]

[Port 6]

[Job Setting]

The port number of the selected RAW port is displayed.

[OFF]

The selected RAW port is not used.

[OK]

Saves the settings and moves to the previous screen.

[Exit [UTILITY]]

Closes the [UTILITY] screen.

Remarks

-

Reference

-

Screen access

Control panel - Utility/Counter - [Administrator Setting] - [Network Setting] - [NIC Settings] - [TCP/IP Settings] - [RAW Port Number]

Procedure

1
Selects RAW port that sets port number.

The port number of the selected RAW port is displayed in [Job Setting].

2
Enter the port number in Control panel - Keypad.
3
Press [OK].
