[CD Alignment Adjustment]
Overview
Adjust the alignment amount in the crosswise direction of Trimmer Unit TU-510.
Tips
- This is a setting item used to adjust a skew on banner paper. When cutting business cards using standard size paper, you can also adjust a skew by changing the setting of [Banner CD Alignment 5].
Specifications
Category | Adjustment / Maintenance | ||
Location | Machine | Touch Panel | |
Printer driver | - | ||
Application | - | ||
Required options | Trimmer Unit TU-510 with Banner Unit MK-764 mounted | ||
Required items | - | ||
Setting items | Alignment position selection key | Select the alignment position to adjust. | |
Keypad | Used to enter numeric values. | ||
[Clear] | Returns the entered numeric value to "0". | ||
[Set] | Sets the numeric value entered using the keypad to the selected setting item. | ||
Remarks | - | ||
Reference | - | ||
Screen access | Touch panel - [MACHINE] - [Adjustment] - [Finisher Adjustment] - [Trimmer Unit Adjustment] - [CD Alignment Adjustment] | ||
Control panel - Utility/Counter - [Administrator Setting] - [System Setting] - [Expert Adjustment] - [Finisher Adjustment] - [Trimmer Unit Adjustment] - [CD Alignment Adjustment] | |||
Procedure
1
Press the target alignment position selection key.
2
Press [Print Mode].
3
Load the desired paper into a paper tray, and select that paper tray.
4
Press Start on the Control panel.
A sample is output.
5
Check the distortion or skew of the post-processing position.
6
If any adjustments are required, press [Exit PrintMode] to return to the setting screen.
7

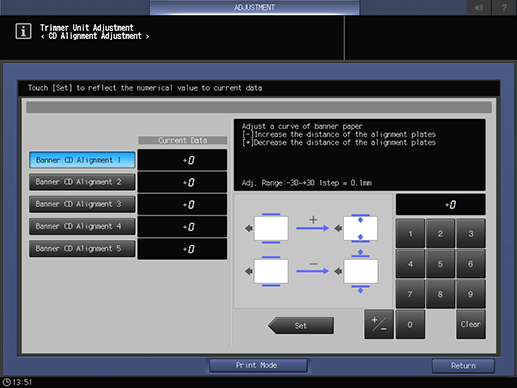

Use the on-screen keypad to enter the numeric value.
Use [+]/[-] to select the plus or minus of the numeric value. To change [Current Data], press [Set].

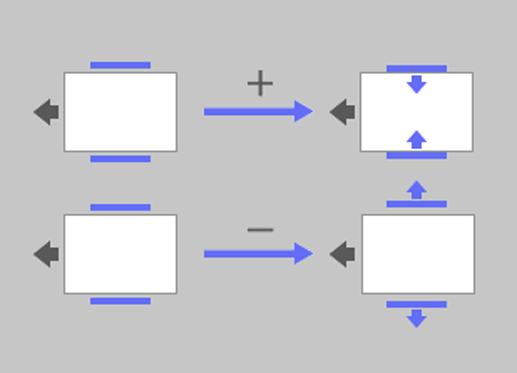

(-) To decrease the push-in amount of the alignment plate, (+) To increase the push-in amount of the alignment plate
[Adj. Range:-30~+30 1step = 0.1mm]
8
Repeat step 2 to step 7 until the desired result is obtained.
