[Density Balance Chart Output]
Overview
Output a density balance chart.
Measure the output density balance chart using a colorimeter and register the adjustment value.
NOTICE
- Outputs the chart to which the screen type set in this system is applied. Select an appropriate screen and paper type before outputting the chart. Go to Administrator Setting > Custom Screen to change the screen type.
Tips
- If [Density Balance Auto. Adj.] is performed without a scanner while Intelligent Quality Optimizer IQ-501 is not mounted, output the density balance chart, measure it using a colorimeter, and then register the adjustment value.
- Refer to the manual included with the colorimeter for more details regarding how to use the colorimeter and how to produce colorimetric data.
Specifications
Category | Print Workflow, Adjustment / Maintenance | ||
Location | Machine | Control Panel | |
Printer driver | - | ||
Application | - | ||
Required options | - | ||
Required items | - | ||
Setting items | [<Measure Spectrophotometer-1 (FD-9)>] | ||
[Type1] | (Recommended) Outputs a single simple measurement chart (8 gradations). | ||
[Type2] | Outputs 2 detailed measurement charts (16 gradations). | ||
[<Measure Spectrophotometer-1 (i1-iSisXL)>] | |||
[Type1] | (Recommended) Outputs a single simple measurement chart (8 gradations). | ||
[Type2] | Outputs 2 detailed measurement charts (16 gradations). | ||
[<Measure Spectrophotometer-2 (i1-Pro/i1-Pro2)>] | |||
[Type1] | Outputs a simple measurement chart (1 gradation). | ||
[Type2] | (Recommended) Outputs a detailed measurement chart (3 gradations). | ||
[<Measure Spectrophotometer-3 (FD-5 BT/MYIRO-1)>] | |||
[Type1] | Outputs a simple measurement chart (1 gradation). (Spot measurement). | ||
[Type2] | Outputs a detailed measurement chart (3 gradations). (Spot measurement). | ||
[Type3] | Outputs a detailed measurement chart (3 gradations). (Strip measurement). | ||
[Print Mode] | Outputs a chart for measurement. | ||
Remarks | - | ||
Reference | - | ||
Screen access | Control panel - Utility/Counter - [Administrator Setting] - [System Setting] - [Expert Adjustment] - [Quality Adjustment] - [Density Balance Adjustment] - [Density Balance Chart Output] | ||
Procedure
1

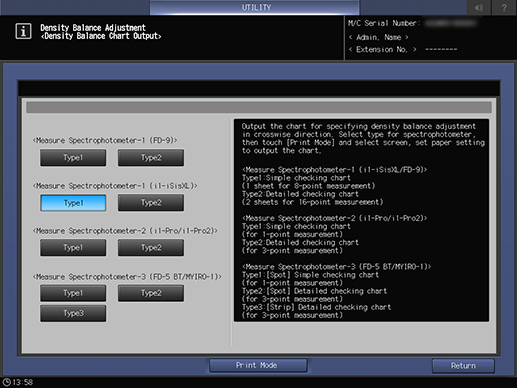

Select the colorimeter and type to be used and press [Print Mode].
2

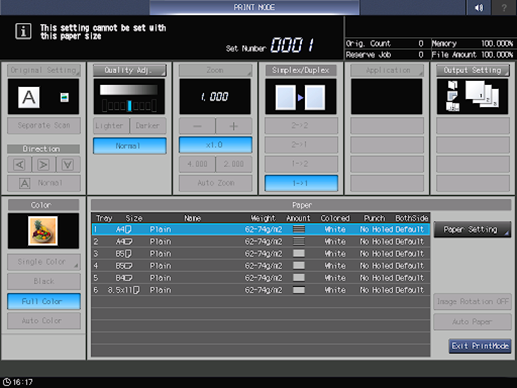

Press [Quality Adj.].
3

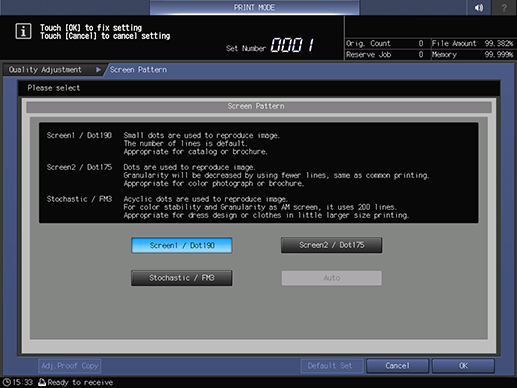

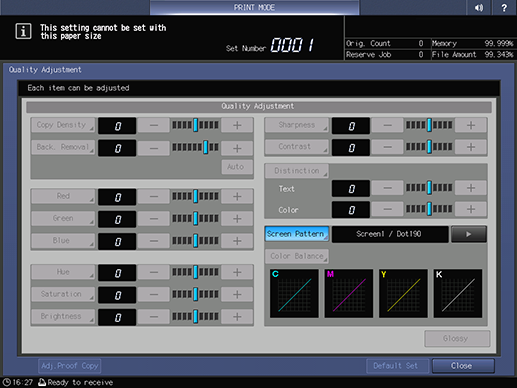

Press [Screen Pattern].
The screen type can be changed even by pressing [)] on the right of [Screen Pattern].
4
Select the screen to be output and press [OK].
5
Press [Close].
6
Select a paper feed tray loaded with paper of any of the following sizes: 12 e 18 w, SRA3 w, 13 e 19 w, 11 e 17 w or A3 w.
7
Press Control panel - Start.
A chart is output.
8
Measure the output chart using a colorimeter and create the colorimetric data.
9
Register the colorimetric data to the system.
See [USB Flash Drive] when registering the data using USB flash drive, or see [Archived Data] when registering the data online.
